RJ-45 CAT5 and CAT6 38999 Connectors

Overview

The Corning high speed RJ45 connector system incorporates a MIL-DTL-38999 series III derived metal shell with full 360 degree EMC and mechanical protection and has been designed to meet the requirements of high speed data connections where reliability through environmental sealing and full mechanical protection are required.

This product shares the same 38999 series III shell size 19 panel cut out and mounting dimensions as Amphenol.  Featuring an extended shell profile to match Amphenol dimensions while providing full mechanical protection of the RJ-45 insert. The insert is then fully potted to provide enhanced mechanical and environmental performance.  The original version of our ruggedized RJ45 Ethernet connector systems and now very popular in Aluminium Bronze and Stainless Steel shells, for the most demanding mechanical and environmental applications

Download Spec Sheet



Applications

  • Cabinet Mounted Communication Systems
  • Homeland Security and Surveillance
  • Naval Shipboard Applications
  • Deployable Military Tactical Networks
  • Oil and Gas Surface Applications
  • Harsh Industrial Installations
  • Emergency Restoration Systems

Features / Options

  • RJ-45 CAT5e per ISO/IEC 11801
  • RJ-45 CAT6a
  • 1 turn self-locking coupling
  • Mechanical shell keyway coding before connection
  • Positive cordset retention >100N axial force
  • Mating Cycles >500
  • Data transfer rate tested to 10 Gigabit
  • Sealed to IP68 for fluid and dust laden environments
  • High levels of shock, vibration and mechanical impact protection
  • MIL-DTL-38999 series III derived polarized shell, with fast and secure coupling
  • Fully enclosed Aluminium, Marine Bronze and Stainless Steel shells for superior mechanical strength
  • Voltage rating 50V DC / 35V Ac
  • Operating temperature -40°C to +120°C
Material / Plating Options:
  • Aluminium - Electroless Nickel
  • Aluminium – Cadmium Olive Drab Over Electroless Nickel
  • Aluminium – Zinc Cobalt Olive Drab Over Electroless Nickel
  • Stainless Steel – Passivate
  • Nickel Aluminum Bronze – Shot Blast

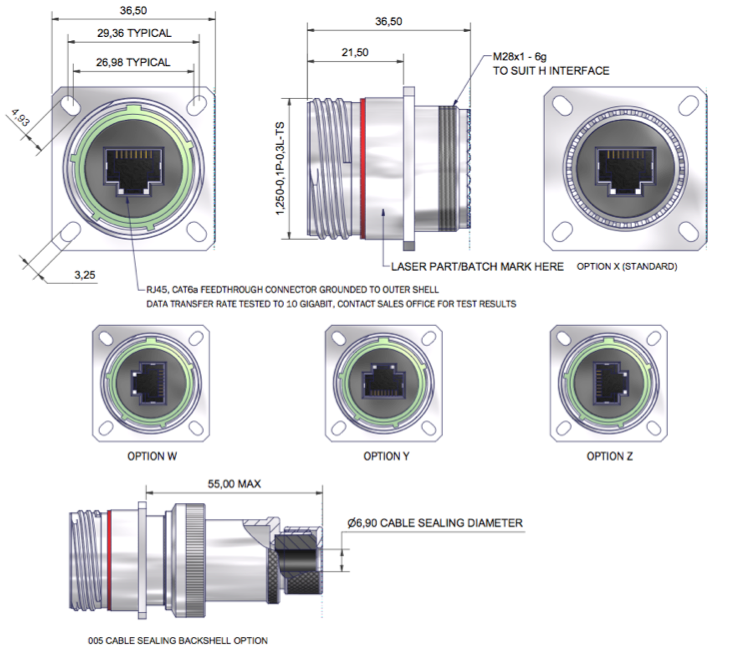

Drawings
