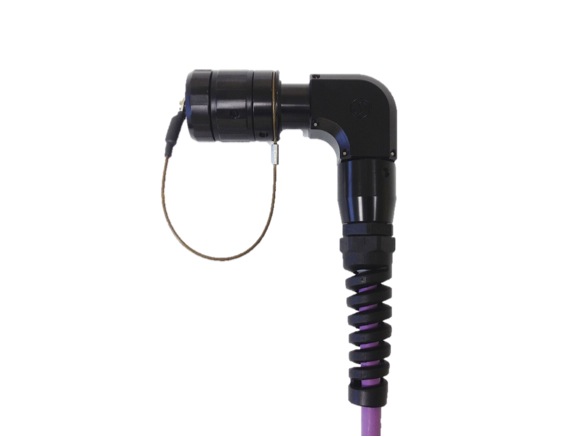

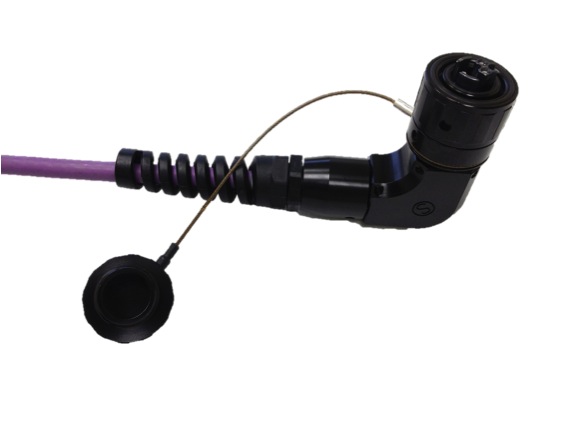

TFOCA GenX 90 Degree Fiber Optic Connector


Stran Technologies’s TFOCA GenX 90° Plug Connector is designed for mounting applications where the installer has limited workspace or the connection needs to be re-routed close to equipment. One major advantage of this connector is its short length of 3.20” making it ideal for cabinet or equipment mounted fiber connections.

Compatible with legacy systems, our connectors have field demountable front inserts for improved maintainability and captured split alignment sleeves for enhanced insertion loss performance. In addition, they are available with PC polish on their zirconia ferrules and all types of plating including zinc/nickel plating, on request, Available with keyed and annotated front insert caps, both single-mode as well as multimode fibers are compatible in the same connector without any sub-component substitution. Our GenX 90° connectors are intermateable with MIL-PRF-83526/16 specification connectors as well.

Download Spec Sheet


  • Cabinet Mounted Communication Systems
  • Harsh Environment Video/Data Transmission
  • Outdoor Fiber Optic Connections
  • Homeland Security and Surveillance
  • Deployable Military Tactical Systems
  • Deployable Broadcast Networks
  • Mobile Command and Control Platforms

Features / Options

  • Field demountable front inserts for improved maintainability
  • Both singlemode and multimode fiber are compatible in the same connector without part sub-component substitution

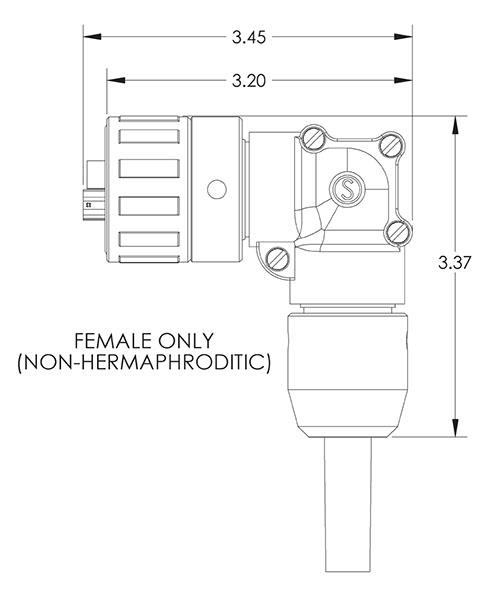

  • Less than 3.20” length without dustcaps
  • PC polish on the zirconia ferrules
  • TFOCA GenX 90° Connector is intermateable to the soon to be released MIL-PRF-83526/16 specification
  • Keyed and color annotated front insert caps available
  • Captured split alignment sleeves for enhanced IL performance
  • Zinc/Nickel plating, other platings and materials available upon request


Title Description
Optical Insertion Loss 9/125: 0.75 dBmax, 0.35 dBtyp62.5/125: 0.75 dBmax, 0.14 dBtyp
Return Loss >30 dB MMF, >40 dB SMF with PC polish
Mating Durability 2000 cycles per EIA-455-21
Vibration 10 g’s per EIA-455-11
Physical Shock  per EIA-455-14, test condition A
Thermal Shock  -62°C to +85°C per EIA-455-71, cond. B
Temperature Life 250 hours at 85°C per EIA-455-4
Corrosion Resistance EIA-455-16, test condition C
Humidity 10 cycles per EIA-455-5
Fluid Immersion 1 meter, per EIA-455-12
Crush Resistance 450 lbs, per EIA-455-26
Cable Retention 400 lbs, per EIA-455-6
Cable Seal Flexing Per EIA-455-1
Impact EIA-455-2
