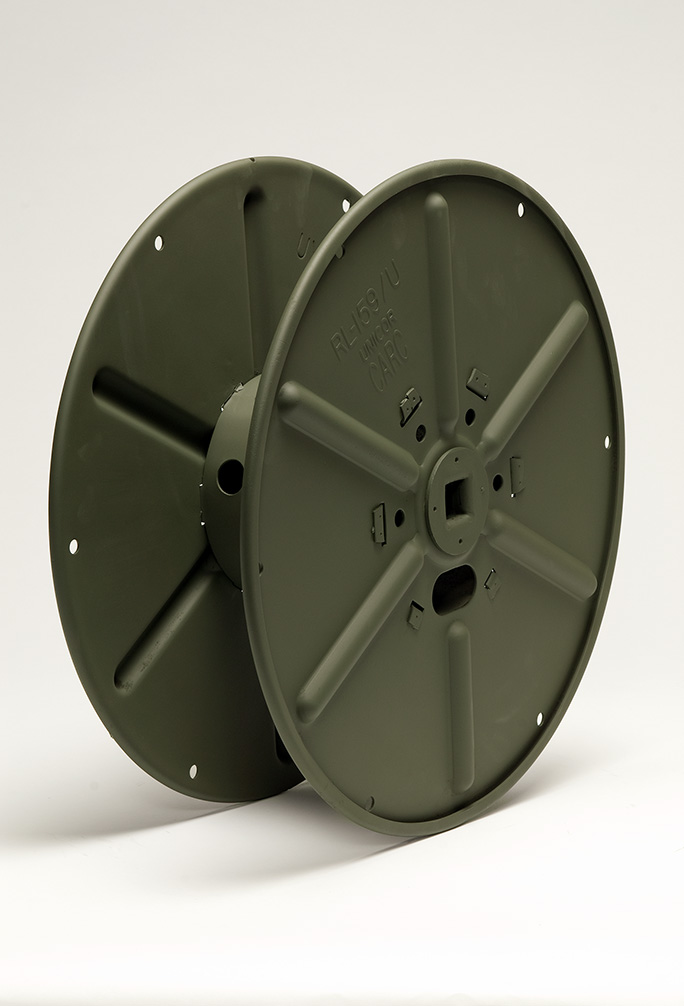

RL-159 Electrical Cable Reel
Overview
The Stran Technologies Shane™ RL-159/U cable reel provides a medium-length cable capacity for our electrical cable reel line. With durable steel construction, the RL-159/U stands up to the most demanding environments where electrical wire and cable is used. The rated capacity is 2.0km of WT-1/TT field wire. The maximum weight capacity rating is 50 lbs. Paint finishes available are CARC Green, Desert Tan, and Black.
Specifications
| RL-159 | Specifications |
|---|---|
| Cable Overall Diameter | 6 mm |
| Rated Cable Length | 676 m |
| Flange Diameter | 19.25 in |
| Inner Drum Diameter | 6.59 in |
| Nominal Reel Width | 6.25 in |
| Minimum Bend Radius | 3.3 in |
| Approx. Weight | 20 lbs – 9kg |
