Private: MP-Handheld Cable Reel
Overview

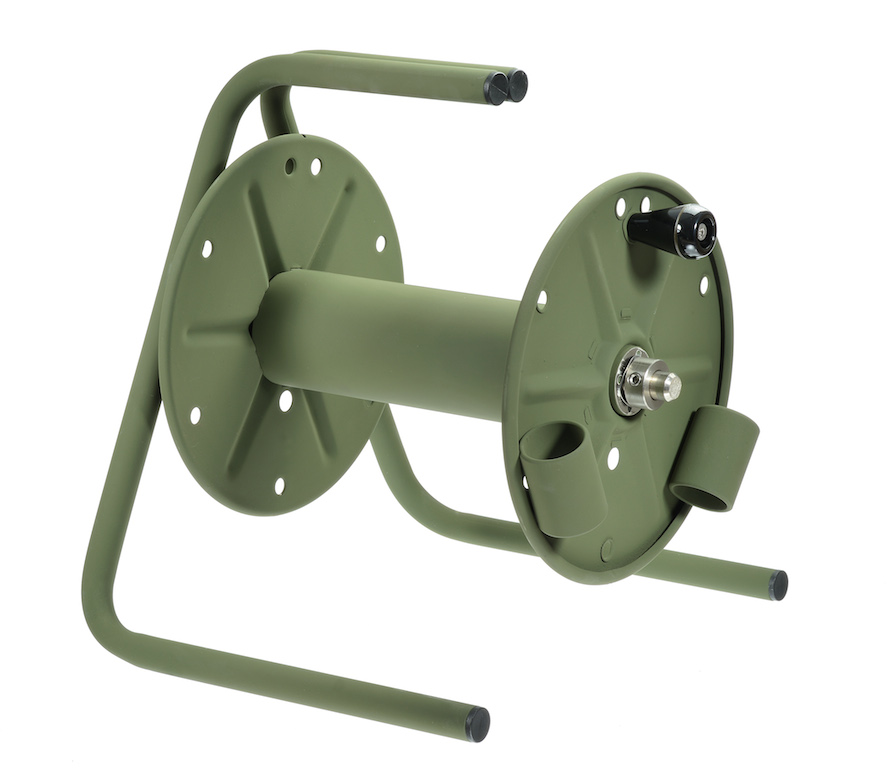

The MP-Handheld cable reel manufactured by Shane Industries is ideal for smaller lengths of wire and cable where mobility and ease of cable management is required. Formerly known as the MP-6707982-0, the MP-Handheld reel comes in both powder coat and CARC paint finishes, providing a robust yet lightweight design which users in both commercial or defense sectors can benefit from.
Specifications
| MP-Handheld | Specifications |
|---|
| Cable Overall Diameter | 6 mm |
| Rated Cable Length | 190 m |
| Flange Diameter | 9.0 in |
| Inner Drum Diameter | 2.75 in |
| Nominal Reel Width | 9.0 in |
| Stand Base Width | 13.0 in |
| Stand Base Depth | 11.0 in |
| Stand Height | 12.75 in |
| Minimum Bend Radius | 1.38 in |
| Approx. Weight | 9.16 lbs – 4.15 kg |

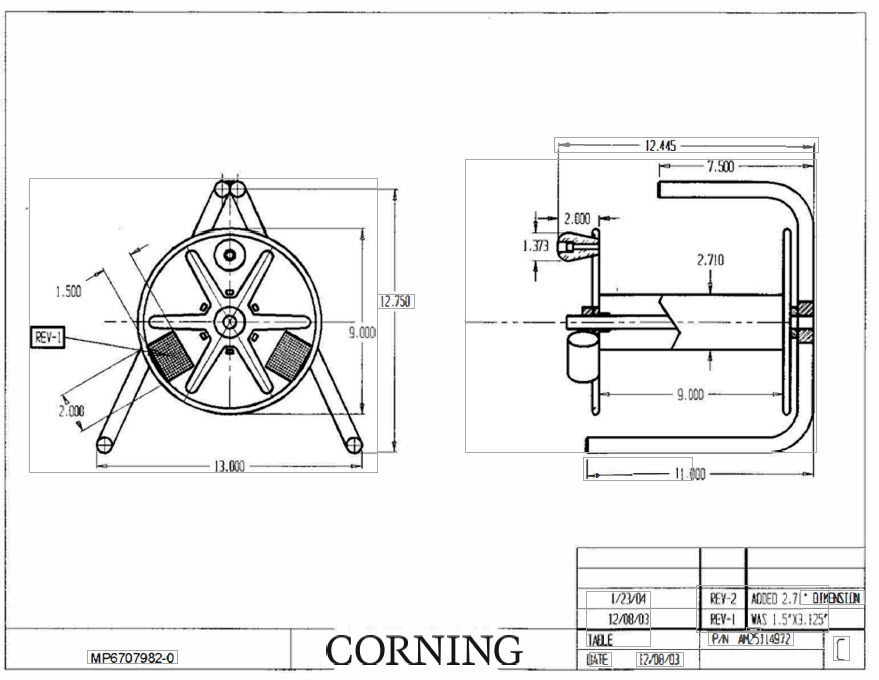

Drawings
