DR-5 Electrical Cable Reel
Overview

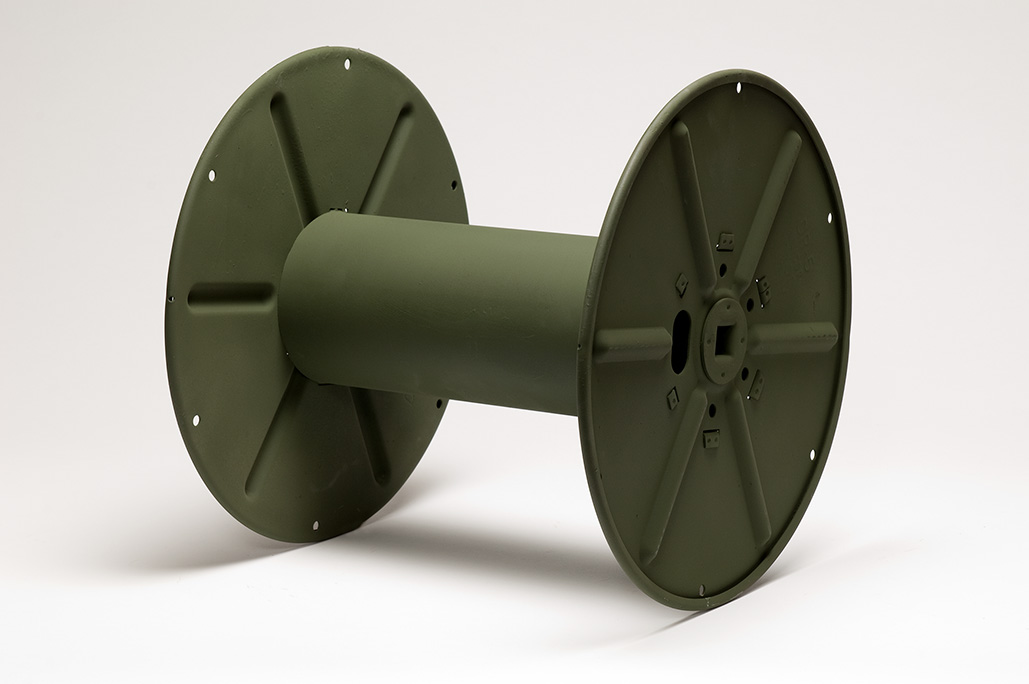

The Stran Technologies Shane™ DR-5 cable reel provides the highest cable capacity in the our electrical cable reel line. With durable steel construction, the DR-5 stands up to the most demanding environments where electrical wire and cable is used. The rated capacity is 1 mile of WF-16 field wire. The maximum weight capacity rating is 125 lbs. Paint finishes available are CARC Green, Desert Tan, and Black.
Specifications
| DR-5 | Specifications |
|---|---|
| Cable Overall Diameter | 6 mm |
| Rated Cable Length | 676 m |
| Flange Diameter | 19.25 in |
| Inner Drum Diameter | 6.59 in |
| Nominal Reel Width | 17.00 in |
| Minimum Bend Radius | 3.3 in |
| Approx. Weight | 26 lbs – 11.88 kg |
