TFOCA GenX Hybrid 2×2 Fiber Optic – Copper Connector

Overview

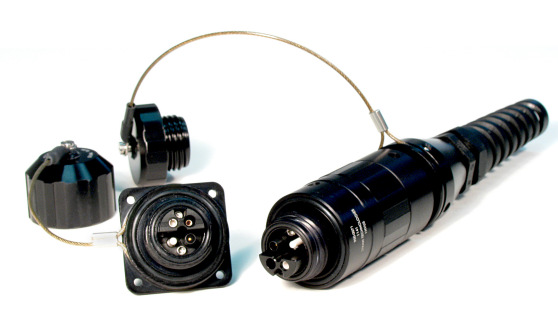

The TFOCA GenX Fiber Optic / Copper connectors provides the ultimate hybrid solution where both fiber optic and copper contacts have been incorporated into one connector. Built on the standard TFOCA GenX hermaphroditic fiber optic connector, the hybrid 2 x 2 connector features 2 fiber optic termini and 2 copper 16AWG contacts for low power transmission. The design and packaging of these connectors provide a robust connectivity solution resistant to corrosion, mechanical and thermal shock environments while providing easy field maintenance.

Applications

  • Deployable Military Tactical Systems
  • Outdoor Fiber Optic Networks
  • Emergency Restoration Systems
  • Mobile Command and Control Platforms
  • Tactical Electro-Optic Sensor Systems
TFOCA Genx Hybrid 2×2 Info Sheet

To access this document, please complete the following:

First Name (required)

Last Name (required)




Email (required)

Company

Features / Options

  • Preserving its lineage of a hermaphroditic connector with internal circuit crossover, longer cable overhaul lengths can be addressed by concatenating multiple cable segments together
  • Standard 4ch hermaphroditic, or genderless, configuration
  • 2 fiber optic termini and 2 copper 16AWG M39029-37 socket and -36 pin contacts
  • Black hard anodize with teflon impregnation or ZnNi
  • Both singlemode and multimode fiber are compatible in the same connector without part sub-component substitution
  • Electrical safety features include shrouded electrical pin and nonconductive insert
  • Field demountable fiber optic termini for improved maintainability and PC re-polish
  • Captured split alignment sleeves for enhanced Insertion Loss performance
  • Jamnut mount receptacle options available

Specifications

Title Description
Optical Insertion Loss 9/125: 0.75 dBmax, 0.35 dBtyp62.5/25: 0.75 dBmax, 0.14 dBtyp
Return Loss >30 dB MMF, >40 dB SMF with PC polish
Voltage Rating 600 Volts
Contact Rating (Amps) Compliance to MIL-STD-1560 for 16 AWG contacts
Mating Durability 2000 cycles per EIA-455-21
Vibration 10 g’s per EIA-455-11
Physical Shock per EIA-455-14, test condition A
Thermal Shock -62°C to +85°C per EIA-455-71, cond. B
Temperature Life  250 hours at 85°C per EIA-455-4
 Corrosion Resistance  EIA-455-16, test condition C
 Humidity  10 cycles per EIA-455-5
 Fluid Immersion  1 meter, per EIA-455-12
Crush Resistance 450 lbs, per EIA-455-26
Cable Retention 400 lbs, per EIA-455-6
Cable Seal Flexing Per EIA-455-1
Impact EIA-455-2

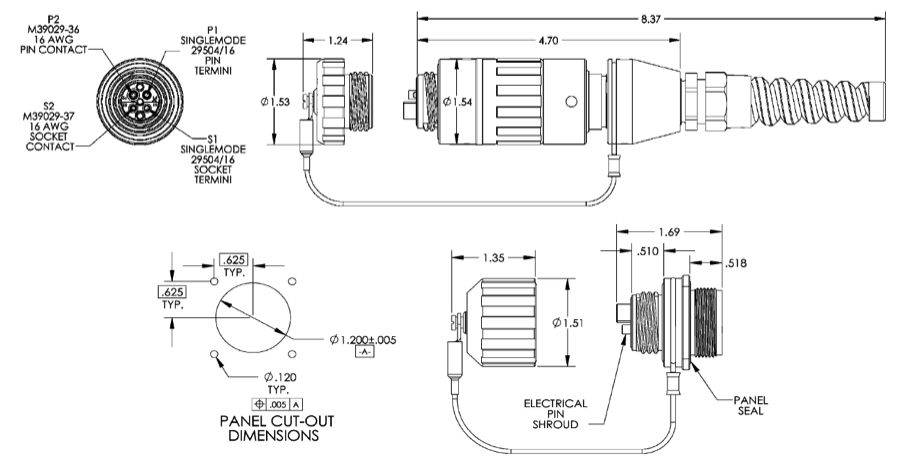

Drawings
