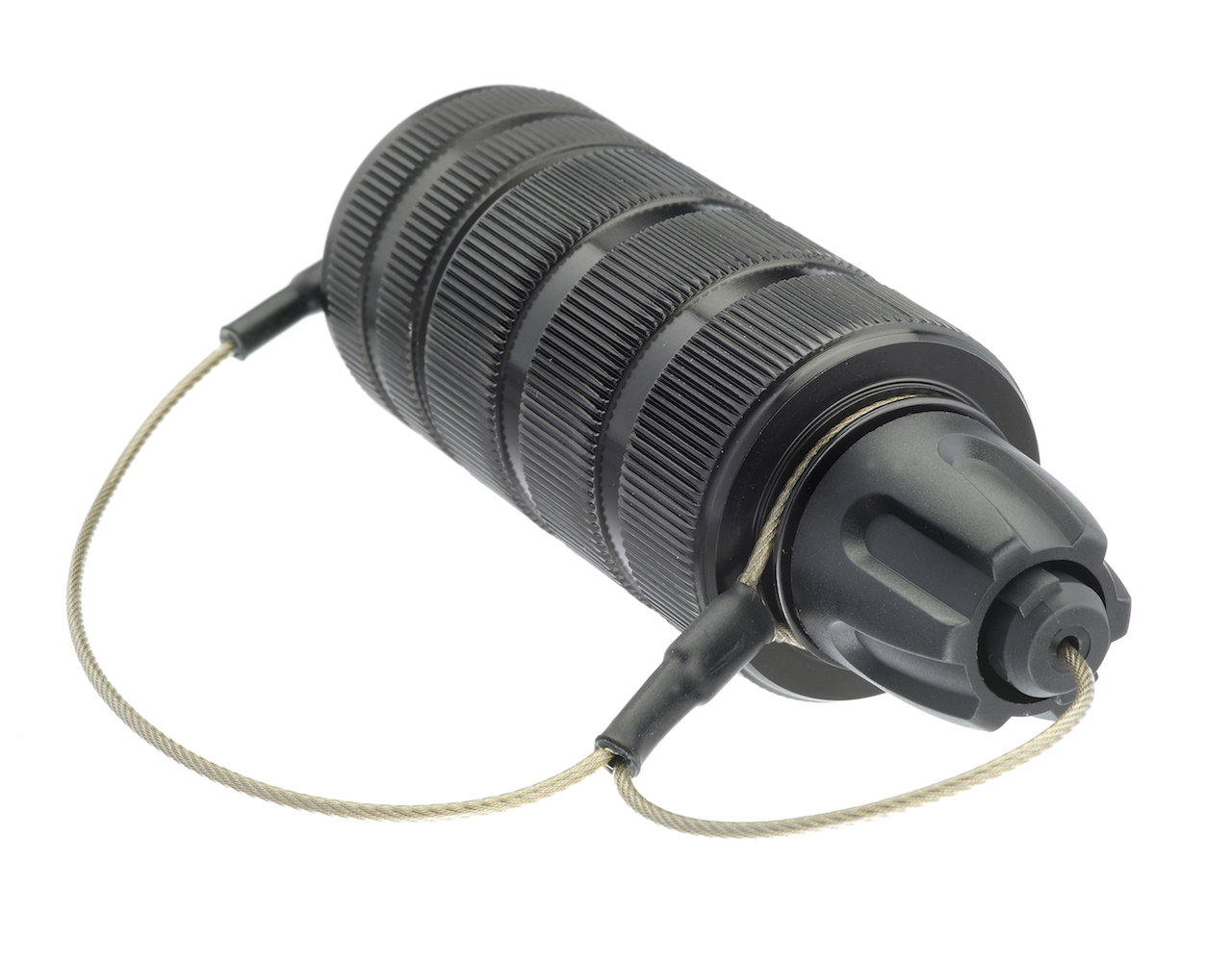

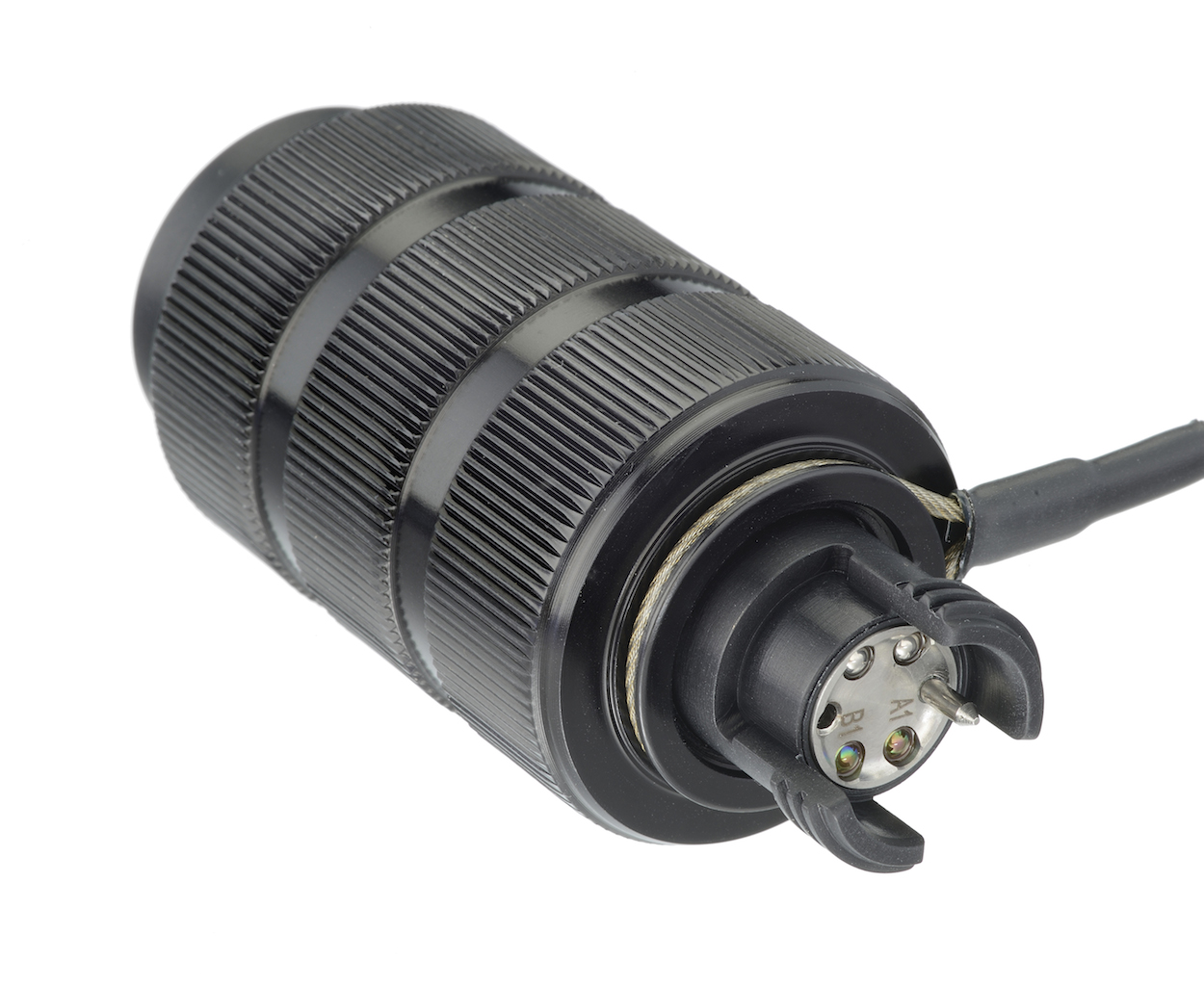

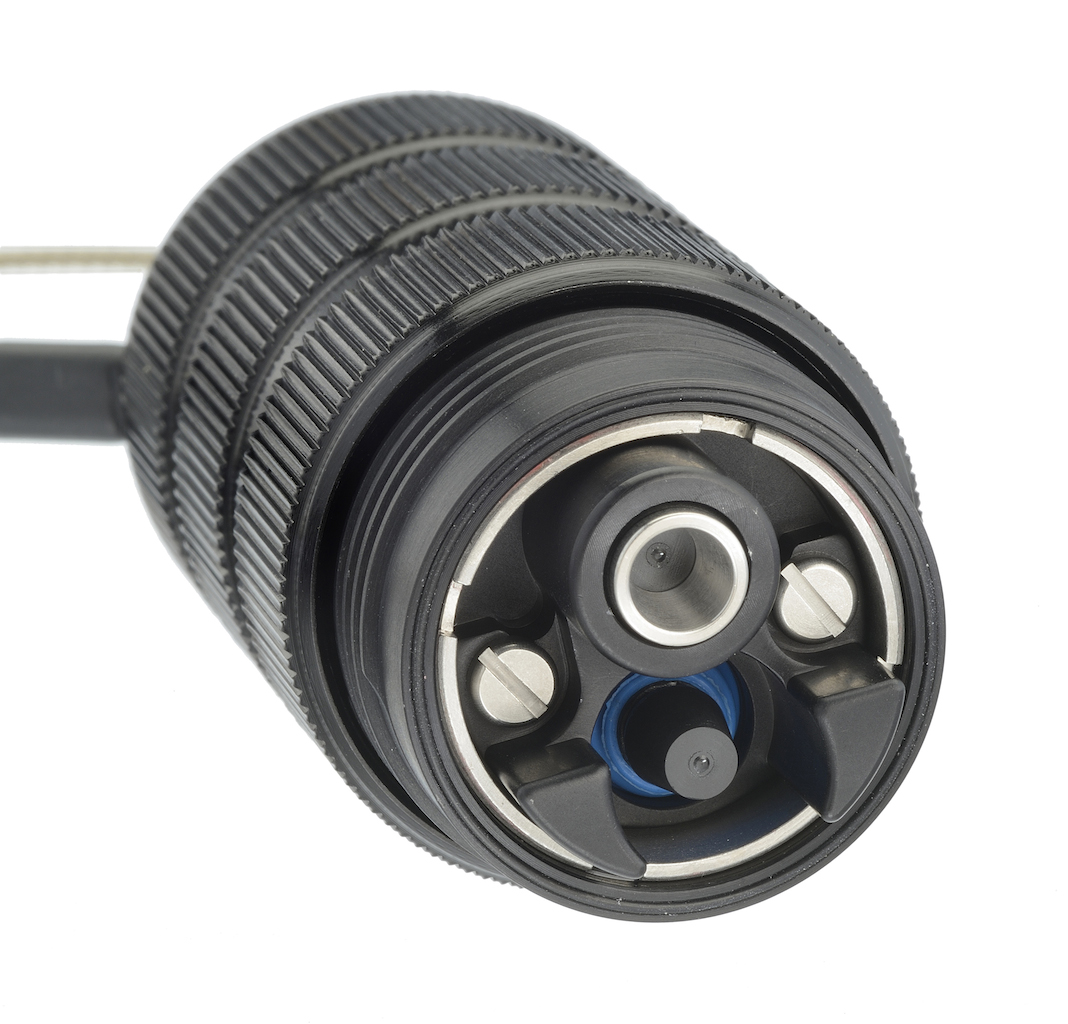

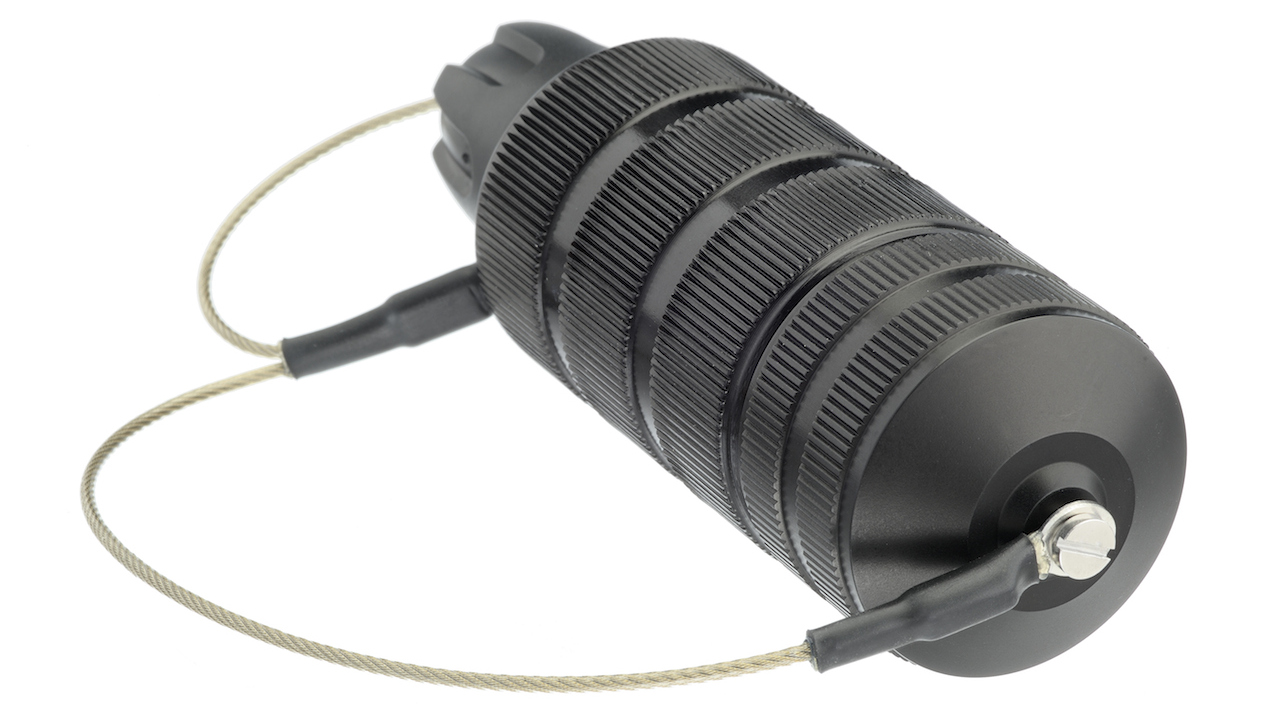

TFOCA 1 – Expanded Beam Fiber Optic Connector Adapter

Overview

Unique in its compact footprint, STRAN Technologies’ TFOCA I to Expanded Beam Fiber Optic Connector Adapter is designed to mate a legacy TFOCA I tactical fiber optic cable assembly system to STRAN’s Expanded Beam fiber optic connector.  The interface dimensions were designed and built to meet MIL-DTL-83526/12 and MIL-DTL-83526/20, ensuring that these adapters will mate with all connectors that were also designed to these specifications.

  • TFOCA I Side: The interface was designed and built in accordance with MIL-DTL-83526/12.
  • Expanded Beam Side: The interface was designed and built in accordance with MIL-DTL-83526/20.

Applications

  • Deployable Military Tactical Systems
  • Harsh Environment Video/Data Transmission
  • Outdoor Fiber Optic Connectors
  • Homeland Security and Surveillance

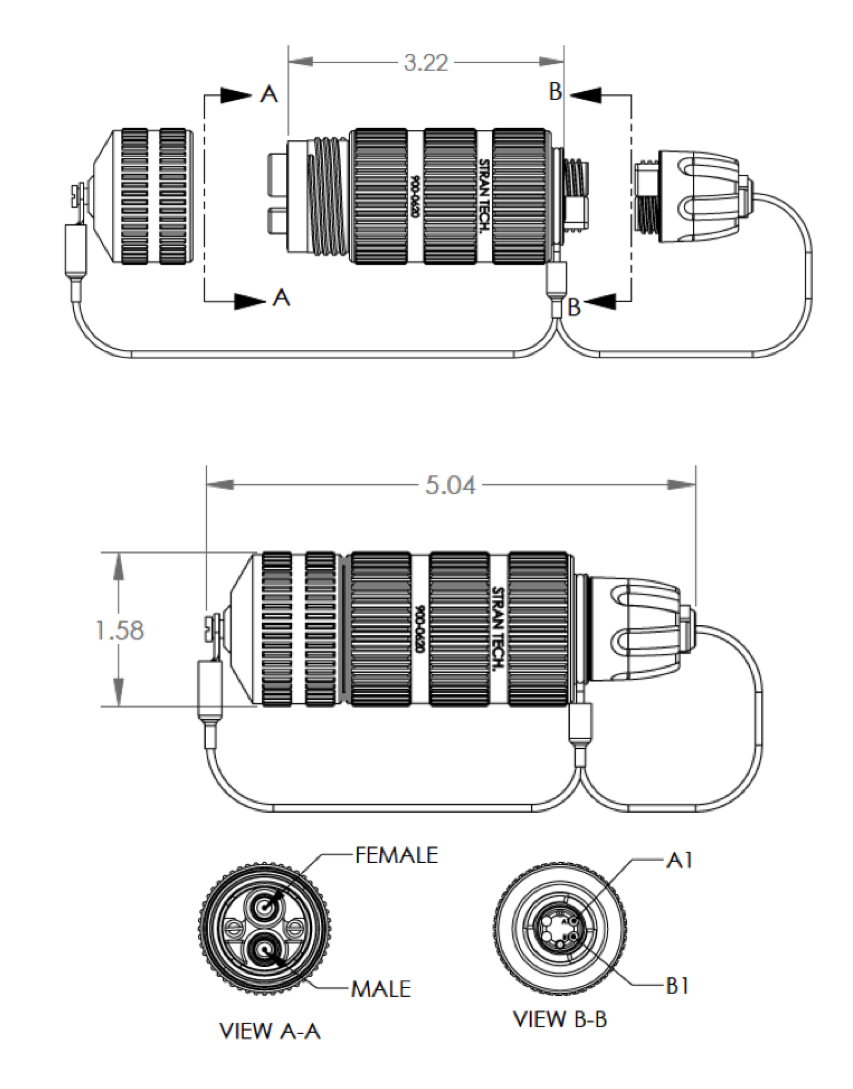

900-0620-Drawing

To access this document, please complete the following:

First Name (required)

Last Name (required)




Email (required)

Company

Specifications

Title Description
Optical Link Loss TFOCA I to Expanded Beam @850nm: 3.00 dB max

Drawings
