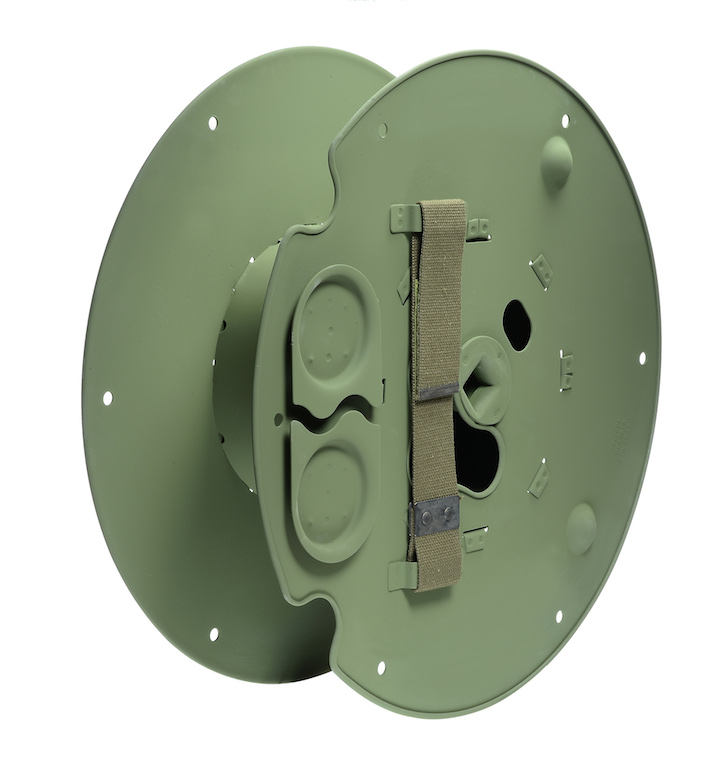

RFO-500-8 Fiber Optic Cable Reel

Overview

The RFO-500-8 cable reel holds 500 feet of 13mm overall diameter cable.  The full steel construction offers strength and durability you can count on for repeated use in the toughest environments. Paint finishes available are CARC Green, Desert Tan, and Black Powder Coat.

Included in the rugged design are features for secure cable management, connector storage, and superior cable protection.  The ideal cable reel solution for Tactical Fiber Optic Cable Assemblies.

RFO-500-8 Drawing

First Name (required)

Last Name (required)




Email (required)

Company

Specifications

Cable Overall Diameter 13 mm
Rated Cable Length 500 ft
Flange Diameter 20.12 in
Inner Drum Diameter 8.93 in
Nominal Reel Width 7.25 in
Minimum Bend Radius 4.38 in
Approx. Weight 16.7 lbs – 7.6kg
