Cyber Network Analyzer

Overview

The Cyber Network Analyzer supports demanding network-centric operations such as simultaneous data capture and analysis.  Packaged in a lightweight, one-person carry ruggedized case, the Cyber Network Analyzer is a go-to solution for mobile, commercial, and tactical IT applications.  The latest technologies in software and computing hardware allow the unit to run up to seven virtual machines with additional scalability options making the Cyber Network Analyzer a critical all-in-one tool to meet your network and cyber security requirements.

Features / Options

Network Capture and Analysis Capabilities:

  • Capability to Simultaneously Capture and Analyze Network Traffic
  • Capability to Perform Both Short-Term and Long-Term Packet Captures
  • Capture Speed Capability of 1 Gbps Per Stream x 4 Streams
    • 2 Streams x RJ-45
    • 2 Streams x LC Fiber Optic Ports with 50/125µm Cable
  • "Fail-to-Wire" Operation Through the Use of Non-Intrusive Network Taps (nTAPs)
  • Fiber and Cat-5 SFP Modules for Network Port Flexibility
  • VM Workstation Supporting Multiple Virtual Machine Operations

 Case Dimensions:

  • 19.78” Length x 15.77” Width x 7.41” Height
  • Weight under 30 lbs

Specifications

Physical Characteristics:

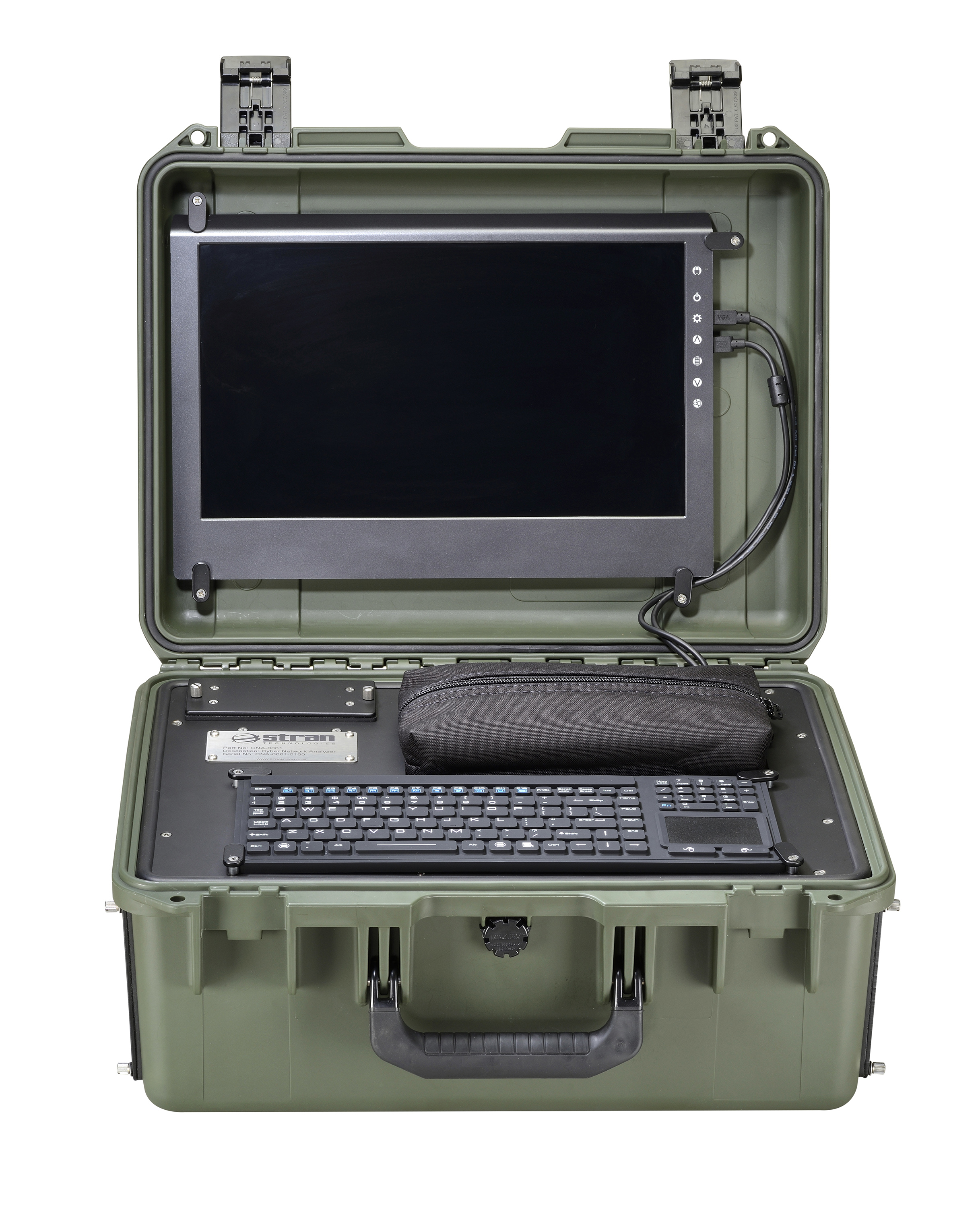

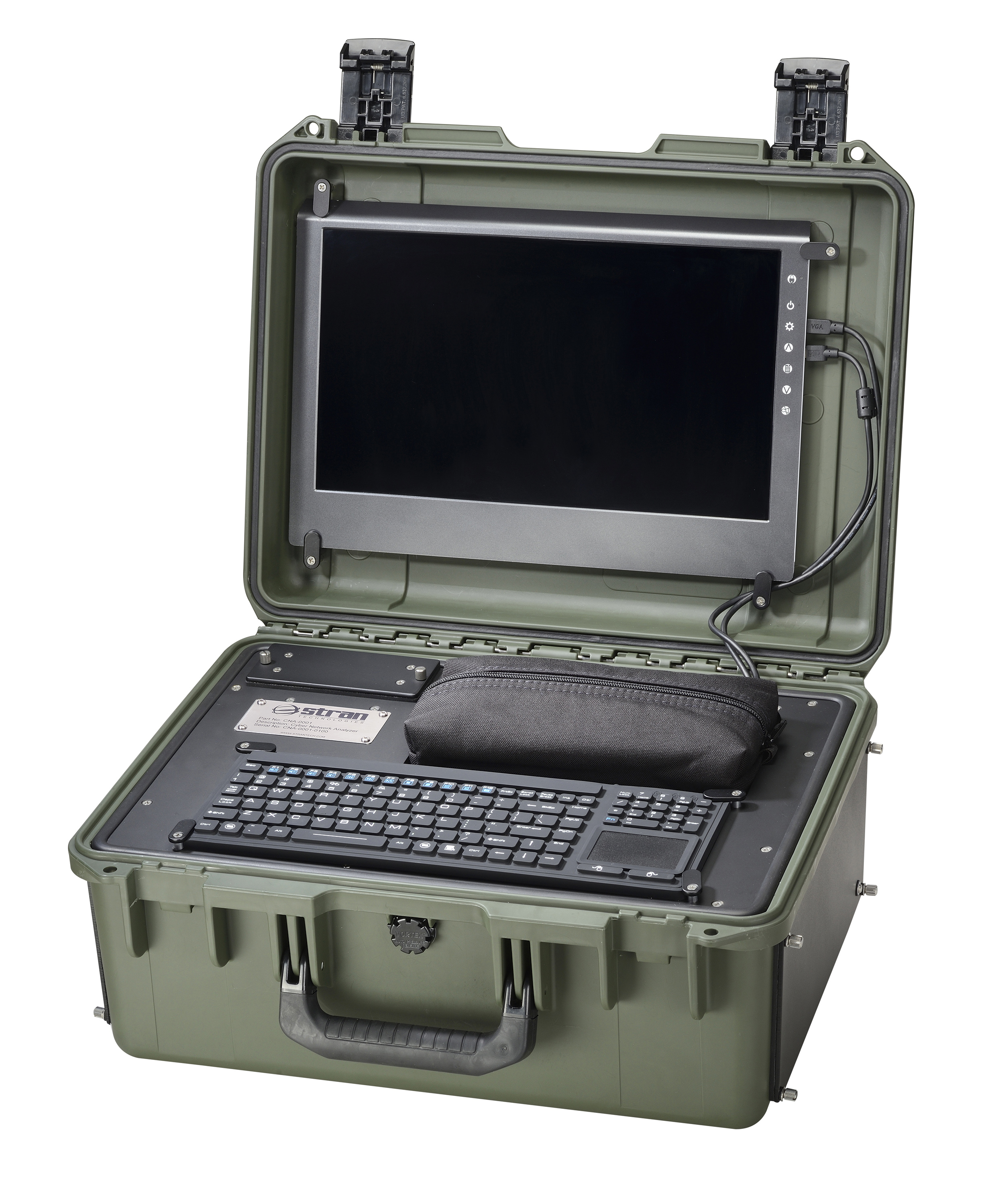

  • Network capture and analysis device contained within a rugged Pelican case
  • Water resistant keyboard with built-in trackpad
  • Weight under 30lbs



Display:

  • 15.6" IPS Display LED-backlit
  • Resolution: Full HD 1920 x 1080
  • Easy access VGA Port for External Video Display Option
  • VGA to HDMI Converter Adapter



Software:

  • OS: Windows 10 Professional 64-bit
  • Wireshark Network Protocol Analyzer
  • Riverbed SteelCentral Packet Analyzer
  • DumpCapUI
  • VM Workstation 12



Processor:

  • Intel Xeon High Performance 3.0 GHz 10 core CPU



Memory:

  • 32 GB of DDR3 RAM (Upgradeable)



Storage:

  • 6 TB of solid state storage (Removable)
  • RAID configuration for maximum read/write speeds



I/O and Networking Interfaces:

  • Two USB 2.0 Ports
  • Two USB 3.0 Ports
  • 4 SFP Ports with 1Gbps Packet Capture Capability
  • One Management LAN (RJ-45 interface)
  • Two Gigabit Ethernet LAN Ports (RJ-45 interface)
  • Accepts Optical and Copper nTAPs
