12 Channel GenX Hybrid Connector

Overview

Founded on Stran’s military 2-plus-2 hermaphroditic hybrid variant, the 12 channel version features 8 fiber optic termini (multimode or singlemode) and 4, 12 AWG contacts for modest power transmission. Rated at 600 volts, the connector incorporates all of the features necessary to ensure user safety and operational compatibility with optical operation such as shrouded contacts that prevent contamination of the fiber termini during make-and-break cycles.

Preserving its lineage of a hermaphroditic connector with internal circuit cross-over, longer cable haul lengths can be addressed in the field, by simply concatenating multiple cable segments together.

Plug assemblies feature stainless steel cable grips for enhanced cable retention and strain relief. Internal electrical grounding for suppression of electrostatic discharge during mate is also provided. The receptacle incorporates a ‘centralizing shroud’ to facilitate blind mating of the hermaphroditic connector during ‘rig-up/rig-down’ operations.

Applications

  • Land and Offshore Drilling Platforms
  • Chemical Manufacturers
  • Petrochemical Refineries

To access this document, please complete the following:

First Name (required)

Last Name (required)




Email (required)

Company


900-0547 12ch Hybrid Plug

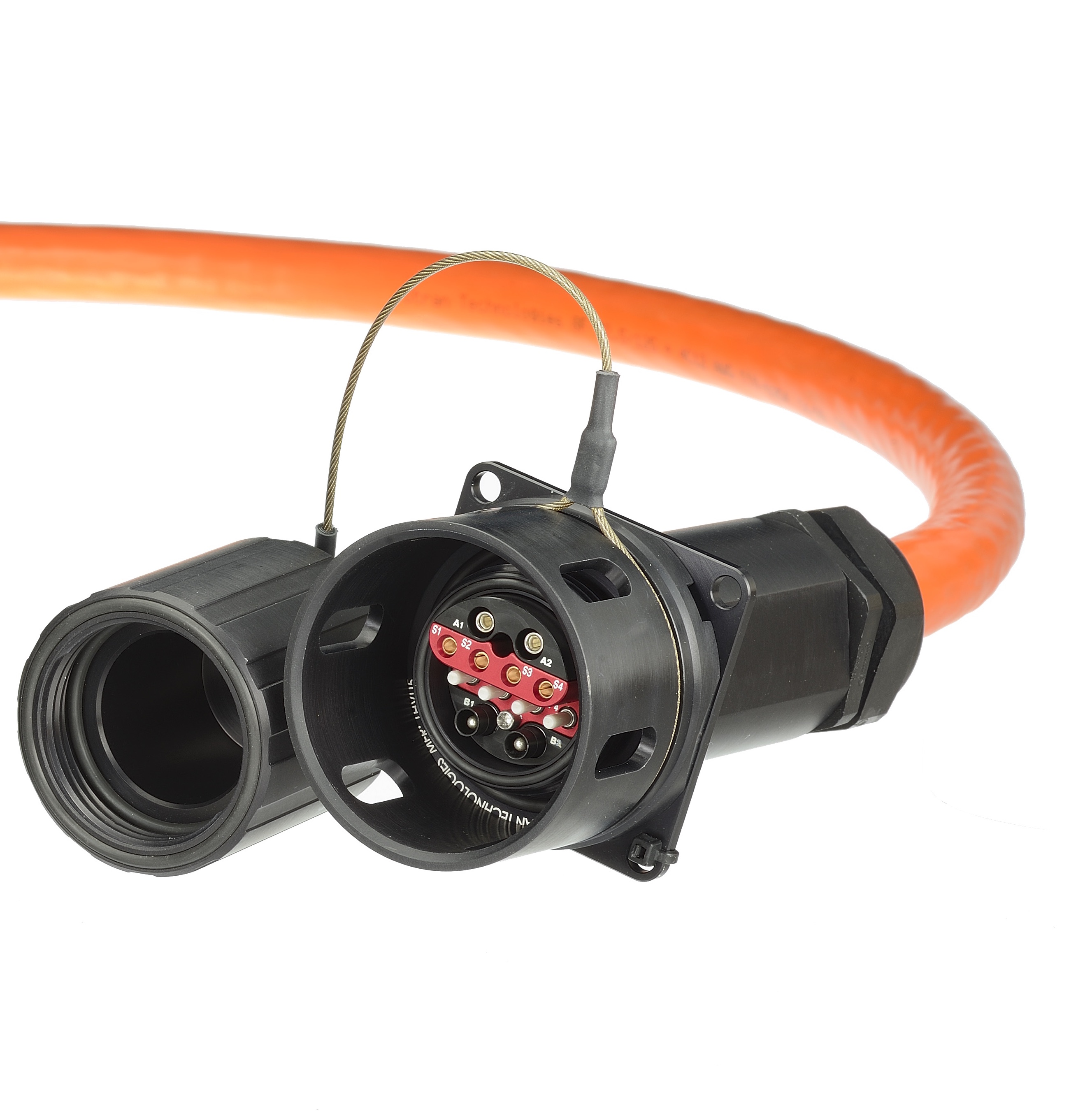

900-0509 12ch Hybrid Flangemount Receptacle

Features / Options

  • 12 Channel Hybrid Connector:  8 Channel Fiber plus 4 Channel Copper.



Specifications

Title Description
Optical Insertion Loss 62.5/125: 0.75 dBmax, 0.14 dBtyp
Return Loss  >30 dB
Mating Durability  2000 cycles per EIA-455-21
Corrosion Resistance EIA-455-16, salt spray, test condition C
Ingress Protection IP66
Thermal Shock -54°C to +85°C per EIA-455-3, Test Cond. 3
Humidity Per EIA-455-5, Type 2
Temperature Life 85°C for 250 hours per EIA 455-4
Vibration Per MIL-STD-1344, Method 2005
Fluid Immersion Per EIA-455-12
Impact EIA-455-2, method C, severe
Crush  450 per EIA-455-26
