Fiber Optic Inspection and Cleaning Kit: K01-1140C

Overview

The K01-1140C Fiber Optic Inspection and Cleaning Kit is optimal for quick troubleshooting, inspection and cleaning of fiber optic connectors for oil & gas, military and commercial end users. Taking field inspection requirements into close consideration, the video scope in this kit has a probe to easily inspect the fiber endfaces without fully disassembling the connector (the microscope included in the HK01-5001 Termination Kit requires disassembly of the connector in order to insert the terminus into the microscope). Only the front insert cap needs to be removed with the included tool.

Helpful tips and instructions are provided to look at TFOCA GenX connectors, ST/SC/FC connectors (both male and adapters), and LC connectors (both male and adapters). The scope features a magnetic back so that it can be placed on a cabinet while using the probe with two hands. Also included are two “click cleaners” that provide a basic cleaning by pressing directly onto the termini. This allows for a quick and efficient cleaning process. Each stick is good for 600+ cleanings. For more stubborn contamination, cleaning fluid and cleaning cubes which facilitate a wet-dry cleaning process are included. The cube has special wipes and a foam backing that provides a cushion when pulling the endface across during cleaning. The fluid is non-hazardous and air-freight compatible. The kit also contains a Visual Fault Locator (VFL) and the STRAN front insert cap removal tool. Instructions and demonstration included on a USB stick with for customer reference.

Features / Options

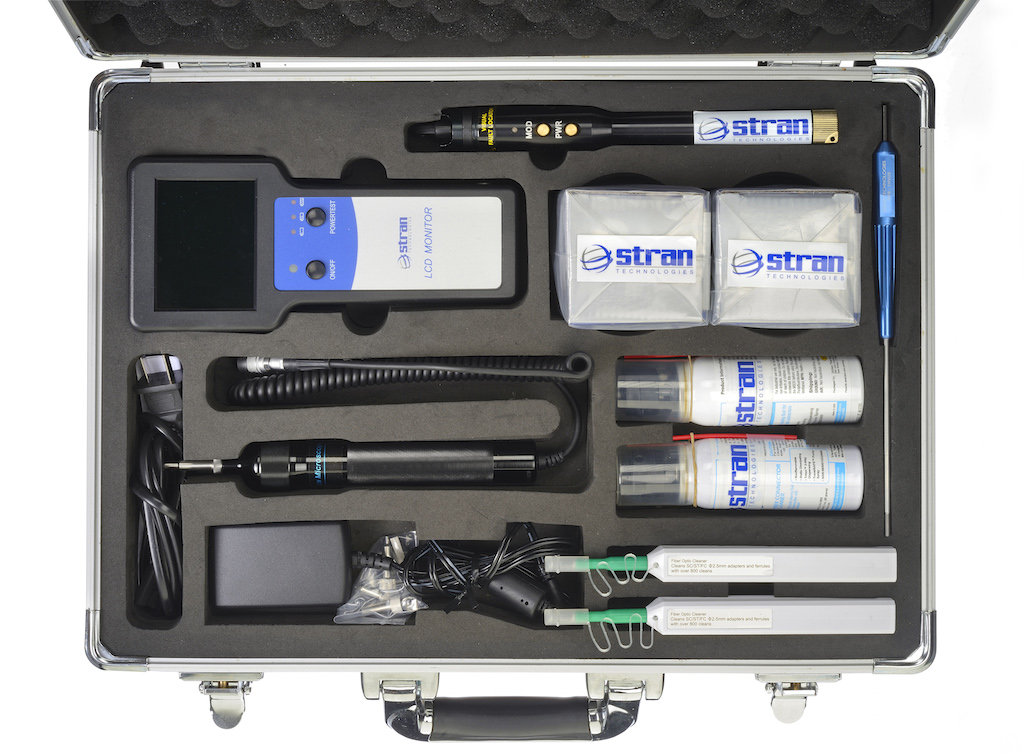

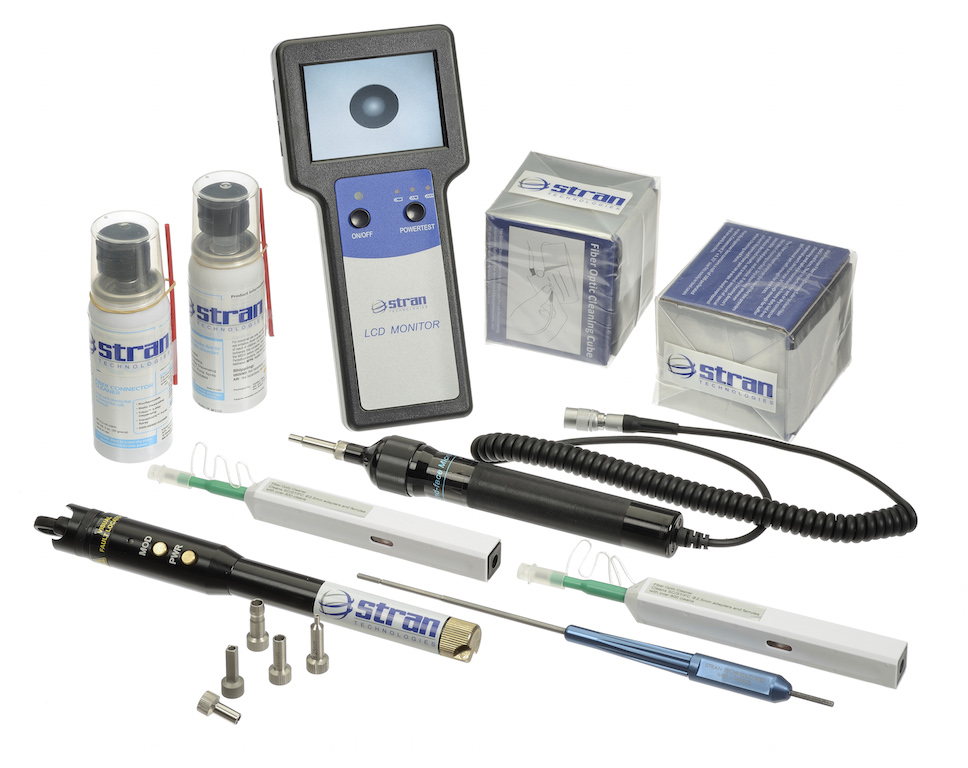

Kit Includes…

  • Fiber Optic Cleaning Cube
  • Formula Connector Cleaner
  • One Click Cleaner for 2.5mm
  • Inset/Extraction Tool for GenX
  • Visual Fault Locator (VFL)
  • LCD Monitor
  • Probe w/ Adapters
  • Hard Carrying Case
  • User’s Manual & Accessories Included

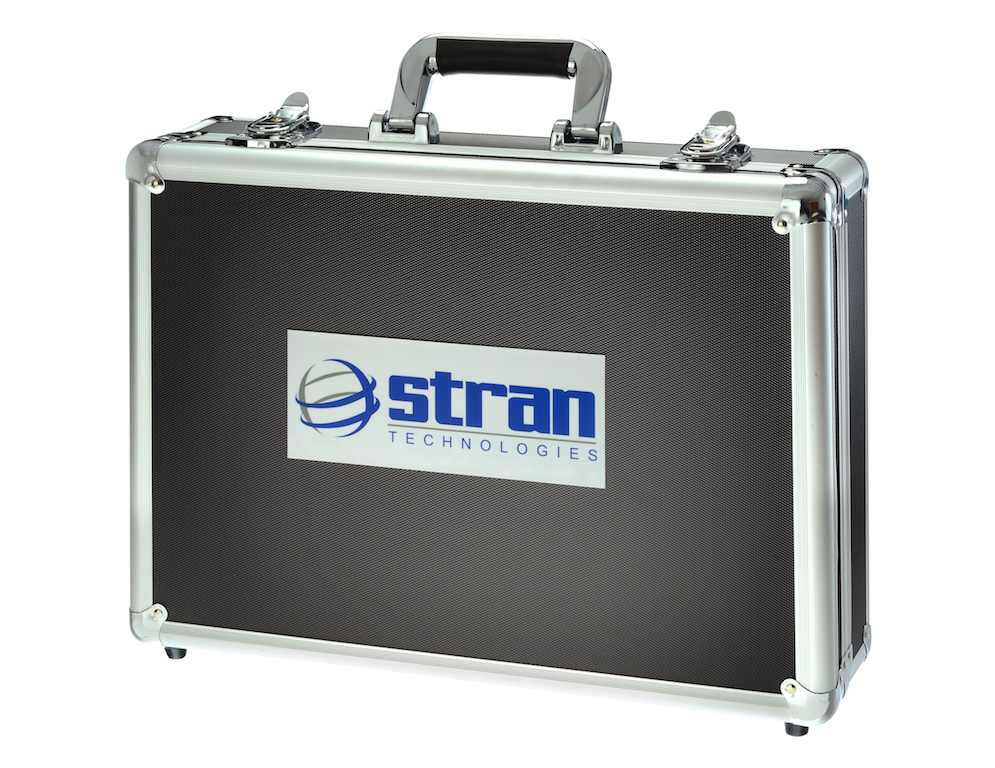

 Case Dimensions

  • 17.5” Length x 14” Width x 5” Height
  • Weight 9 lbs

Specifications

BOM: K01-1140C
Item P/N Description Qty
HC01-0006 Fiber Optic Cleaning Cube 2
HC01-0015 Formula Connector Cleaner 2
C01-0034 One Click Cleaner for 2.5mm 2
420-0111-03 Tool Genx Insert/Extraction 1
HT02-0044 Visual Fault Locator (VFL) 1

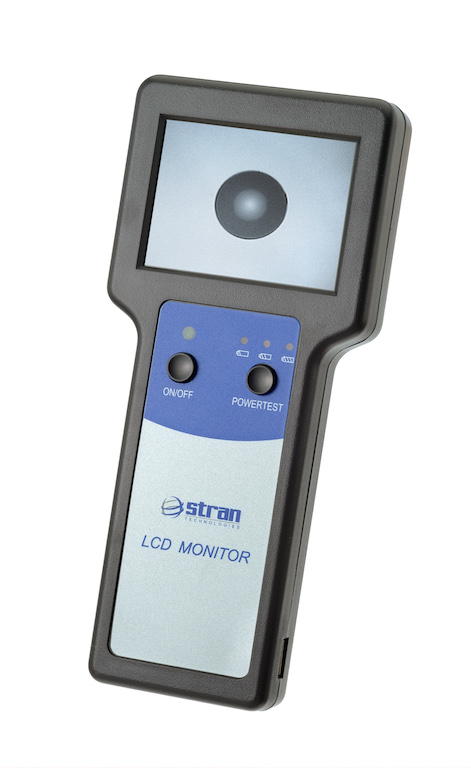

HT02-0045 LCD Monitor 1
HT02-0046 Probe w/Adapters 1
HT02-0033-1 Hard Carrying Case 1
HM01-0002 User's Manual & Accessories Included 1
