TFOCA 1 Fiber Optic Cable Assemblies

Overview

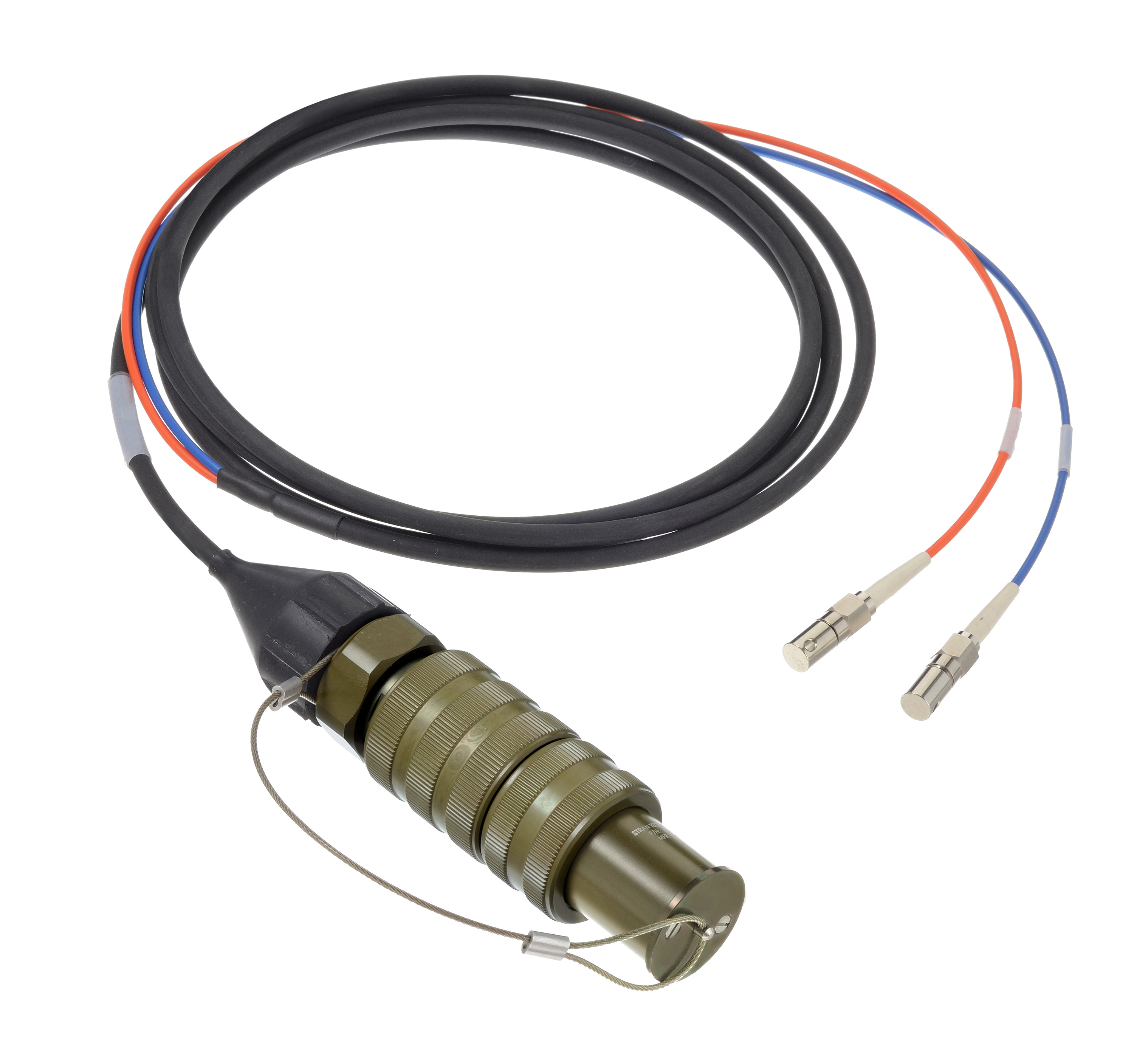

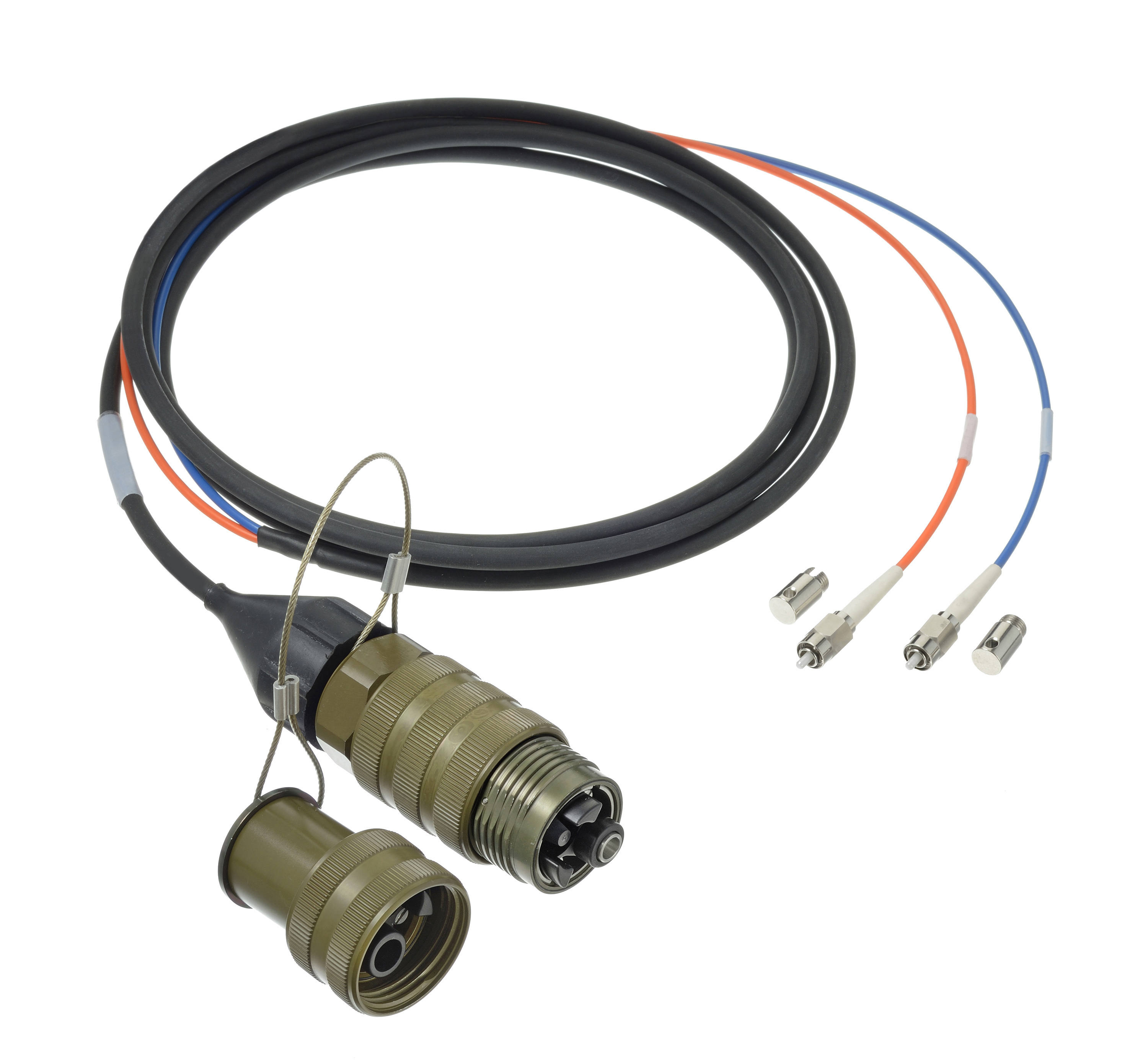

Stran Technologies supports TFOCA I tactical fiber optic cable assemblies. Fully compatible with legacy products, Stran has retooled the TFOCA I with stainless steel alignment sleeves for improved performance, repeated handling and frequent mating cycles typically required for fiber optic cable deployment and retrieval in a tactical environment. TFOCA I cable assemblies are available in multiple combinations, ranging from panel mounted receptacle assemblies to tactical cable reel assembly solutions.


To access this document, please complete the following:

First Name (required)

Last Name (required)




Email (required)

Company

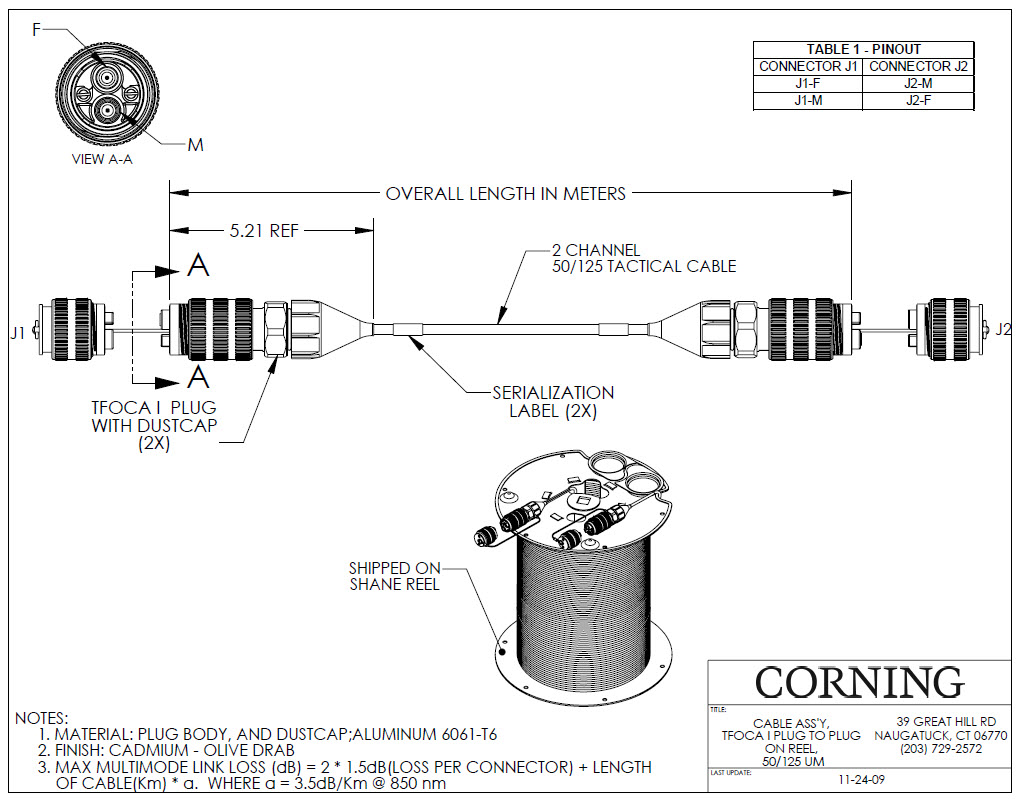

TFOCA-I-PLUG-TO-PLUG-ON-REEL
TFOCA 45 and 90 Degree

Features / Options

Connectors:

  • TFOCA 1 Plug/Plug
  • TFOCA 1 Jam Nut Receptacle to ST
  • TFOCA 1 Flange Mount Receptacle to ST
  • TFOCA 1 Plug/ Flange Mount SN Receptacle
  • TFOCA 1/ Jam Nut Receptacle

Channel Count (number of fibers):

  • 2 channel Multimode Connectors

Plating Options:

  • Green Zinc Nickel
  • Cadmium, Olive Drab

Strain Relief Options:

  • Nylon Flex/ Dome
  • Ni plated brass Flex/ Dome
  • Stainless Kellems
  • Rubber Boot
  • Rubber Boot/ Nylon Dome
  • None

Cable and Fiber Type:

  • Tactical
  • Armored
  • Breakout
  • Distribution
  • Special
  • 62.5/125 Multimode Fiber (MM-62.5μm)
  • 50/125  Multimode Fiber (MM-50μm)
  • 9/125 Singlemode Fiber (SM-9μm)
  • Length:  24” to 1 Mile (0.6m to 1.6km)

Special Instructions:

  • Spool onto: Reel, Backpack, Loose Coil

Specifications

Title Description
Features 100% Optically tested stainless steel alignment sleeves Field demountable front insert for improved termini maintainability field maintainable and repairable Standard hermaphroditic, or genderless, configuration
Mating Durability 2000 cycles per EIA-455-21
Vibration  MIL-STD-1344, Method 2005.1
Thermal Shock  -10°C to +75°C
Humidity 10 cycles per EIA-455-5
Fluid Immersion 1 meter, per EIA-455-12
Crush Resistance  450 lbs, per EIA-455-26
Impact  per TIA/EIA-455-2
Optical Insertion Loss 50/125: 1.50 dBmax, 0.60 dBtyp9/125: 3.00 dBmax, 2.00 dBtyp
Physical Shock per EIA-455-14, test condition A
Temperature Life 250 hours at 85°C per EIA-455-4
Corrosion Resistance  EIA-455-16, test condition C
Cable Retention 400 lbs, per EIA-455-6
Cable Seal Flexing 100 cycles per MIL-STD-1344, Method 2017, Procedure I

Drawings
