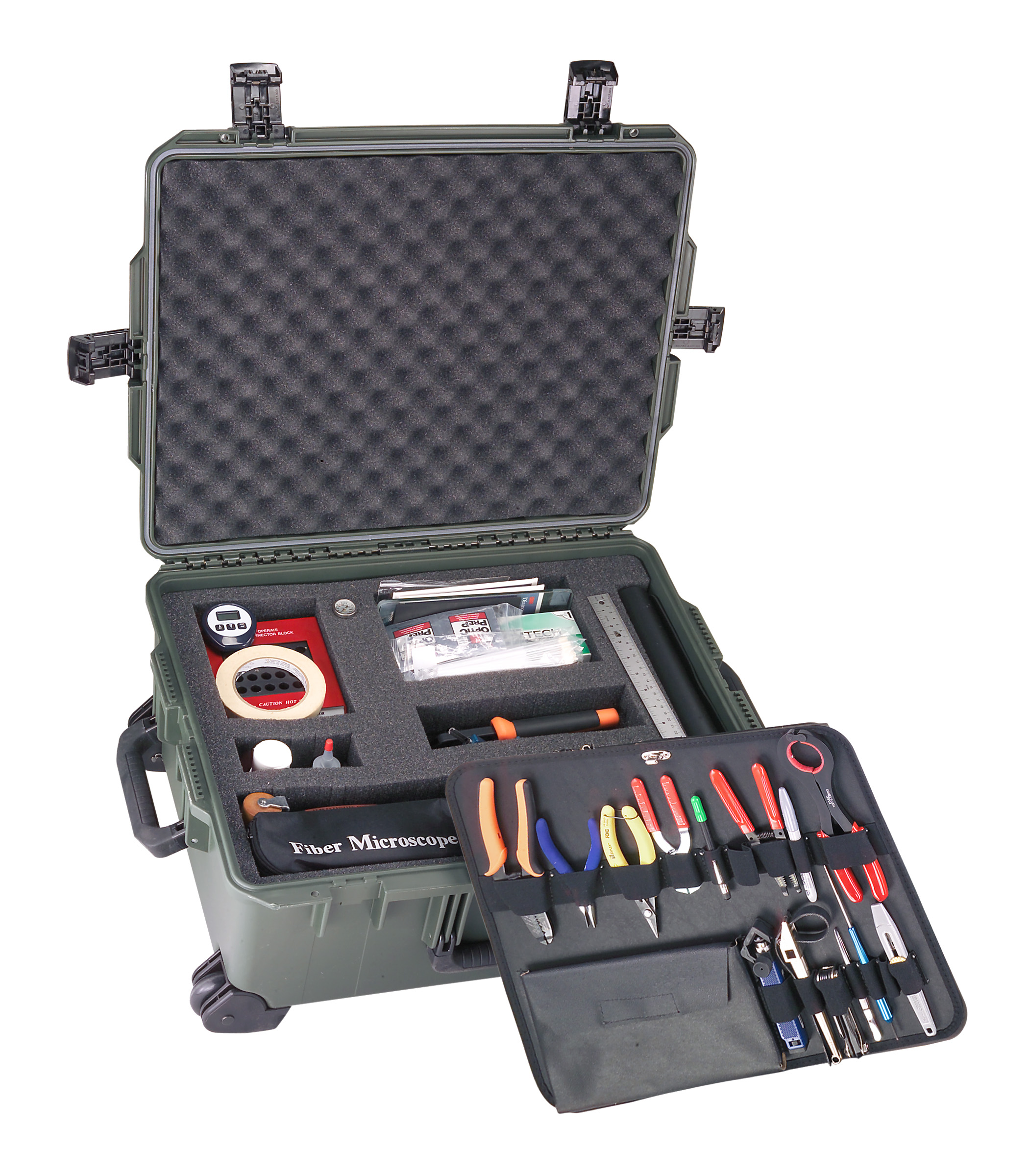

Termination Repair Kit: ST, FC, LC, SC + TFOCA GenX

Overview

Stran Technologies offers a line of customized connector repair and termination kits to support all of our products. Stran is committed to providing customers with the ability to maximize the life cycle management of our systems through product offerings and customized training.

Stran Technologies field termination kits have been developed to support troubleshooting, testing, maintenance and field repair of Stran Technologies’s fiber optic connector and cable assembly solutions. The field termination kit has been specifically developed to include tools and consumables for the TFOCA I, TFOCA GenX, MFOCA, TACLight, as well as, COTS connectors Ruggedized ST, FC, SC, and LC. The kits have upgrade options that include fiber optic probe microscopes and field polishing machines. Custom kits are also available for customers requiring only the specialized tools to support a specific set of fiber optic connectors. The kits can also be configured to include optical test equipment allowing our customers to test the repaired cables and connectors. Training associated with any of the operations for which these kits are designed is also available.

Note: Export of kits, may be subject to the International Traffic in Arms Regulations (22 C.F.R. Parts 120 – 130) or the Export Administration Regulations (15 C.F.R. Parts 730 – 774)

Features / Options

Consumables:
  • Alcohol Bottle
  • Cleaning Wire
  • Masking Tape
  • Marking Pen (Gray + Black)
  • Kimwipes
  • Alcohol Soaked Pads
  • Epoxy, 2.5 grams
  • O-Ring Lube
  • Polishing Film, 9 Micron, AO, 5.5" Round, 50 Sheets
  • Polishing Film, 1 Micron, Diamond, 5.5" Round, 25 Sheets
  • Polishing Film, 0.1 Micron, Diamond, 5.5" Round, 25 Sheets
  • Syringe w/Twist on Dispensing Needle
  • Fiber Optic Foam Applicator/Cleaning Swabs (50/bag)
  • Wipes, Lint Free, 4" X 4", 100/PK
  • Canned Air (Only supplied with ground shipments)

Tools:

  • Safety Glasses
  • Safety Mat
  • Strip Tool, AWG 30-10
  • Kevlar Shears
  • Fold-up Screwdriver (Philips & Slotted)
  • Ruler (Aluminum) 12"/30cm
  • Curing Oven + Curing Block
  • Thermometer
  • Polishing Fixture, ST/SC/FC
  • Polishing Fixture, LC
  • Polishing Pad, 70 Durometer, 5 3/4" X 5 3/4”
  • Tweezers
  • Exacto Knife
  • Fiber Optic Light / Continuity Tester (MM)
  • 2.5mm ST/SC/FC Cure Adapter
  • 1.25mm LC Cure Adapter
  • Fiber Optic Scribe
  • Large Plastic Box w/ Dividers
  • Debris Bottle w/Warning Label
  • Microscope, 400X (Aerotech) w/ 2.5mm Adapter
  • Microscope Adapter 1.25mm Universal
  • Glass Polishing Plate, 6"x9”
  • Oven Timer
  • Water Bottle
  • Crimp Tool (No die)
  • Die Set, AMP SC 2.0/2.5/3.0
  • Die Set, Lucent STII/AT&T/OFS .190Hex/.105&.090 Round
  • Die Set, .128/.151/.215/.197/.178 Hex
  • No Nik 203 (Red)
  • Fiber Optic Stripper
  • Needle Nose Pliers
  • Round Cable Slitter
  • Tool Pallet
  • Custom Case w/ Wheels (pick'n pluck foam)

 Tools for Multi-Channel Connectors

  • Adjustable Wrench
  • Strap Wrench
  • Soft Jaw Pliers

Connector Specific Tools for TFOCA GenX

  • TFOCA GenX Termini Installation and Insertion Tool
  • TFOCA GenX Insert and Extraction Tool
  • TFOCA GenX 4ch Backnut Spanner Wrench
  • TFOCA GenX 8 & 12ch Backnut Spanner Wrench
  • TFOCA GenX 4ch Spanner Wrench
  • TFOCA GenX 8 & 12ch Spanner Wrench
  • TFOCA GenX Polishing Puck
  • Crimp Tool GenX Termini (29504/16 Type)
  • GenX Plug and Receptacle Strip Template

Documents

  • MSDS for Alcohol Pads
  • MSDS for Epoxy Resin
  • MSDS for Epoxy Hardener

 Case Dimensions

  • 25” Length x 20” Width x 12” Height
  • Weight 45 lbs
