SC Connector

Overview

Fully compatible with TIA/EIA-604-3A, IEC 61754-4, and JIS C5973 specifications, STRAN Technologies’ Non-Pull Proof SC Connectors are available in both singlemode as well as multimode configurations. STRAN has specifically designed these connectors with an integral ferrule assembly plus a connector body, which offers long-term reliability of the fiber interconnection and enhanced optical performance. This connector replaces water-blocked shipboard cables, which, due to their tight construction, restrict the contained buffered fiber from pushing back during the mating operation of this small form factor connector. Cable assemblies made with these connectors offer better mechanical properties than those made with standard SC connectors – when terminated with MIL rated, water-blocked OFCCs.

Applications

  • Cabinet Mounted Communication Systems
  • Deployable Broadcast Networks
  • Homeland Security and Surveillance
  • Multichannel Connector Breakout Assemblies
SC_Non_Pull_Proof_Connector

To access this document, please complete the following:

First Name (required)

Last Name (required)




Email (required)

Company

Features / Options

  • Fully compatible with TIA/EIA-604-3A, IEC 61754-4 and JIS C5973 specifications
  • Designed for 2, 2.4 and 3 mm jacketed cable
  • Pre-radiused zirconia ferrules configured for Super, Ultra PC polishing
  • Available in Singlemode and Multimode simplex or duplex configurations
  • Non-pull Proof, intuitive latching mechanism
  • Glass filled composite resin housing
  • Strain Relief designed to meet Telecordia Mechanical Requirements
  • Fully RoHS compliant

Specifications

Title Description
Optical Insertion Loss 9/125 μm: 0.3 dBmax, 0.2 dBtyp 62.5/125 μm: 0.3 dBmax, 0.2 dBtyp
Return Loss >50 dB SMF with PC polish
Mating Durability  1000 cycles
Thermal Shock  -40°C to +80°C (epoxy dependent)

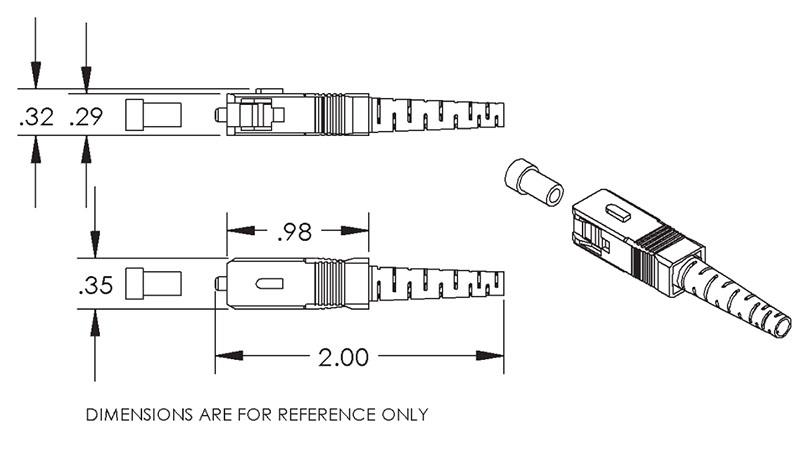

Drawings
