RJ-45 38999 Electrical Connectors

Overview

Stran Technologies offers cylindrical RJ-45 CAT 6a connectors manufactured to the design and interface requirements of the MIL-DTL-38999 specification. This series of connectors provide CAT 6a inserts in a single circular shell. The RJ-45 plug and receptacle connectors offer the customer a very reliable, rugged interconnect product that is designed to provide reliable performance in harsh environments. Various configurations allow this series to accommodate many variables based upon the customers needs.  Options include Plug, Jamnut and Flangemount receptacle connector assemblies.

Applications

  • Deployable Military Tactical Systems
  • Emergency Restoration Systems
  • Ethernet Data Transmission

To access this document, please complete the following:

First Name (required)

Last Name (required)




Email (required)

Company

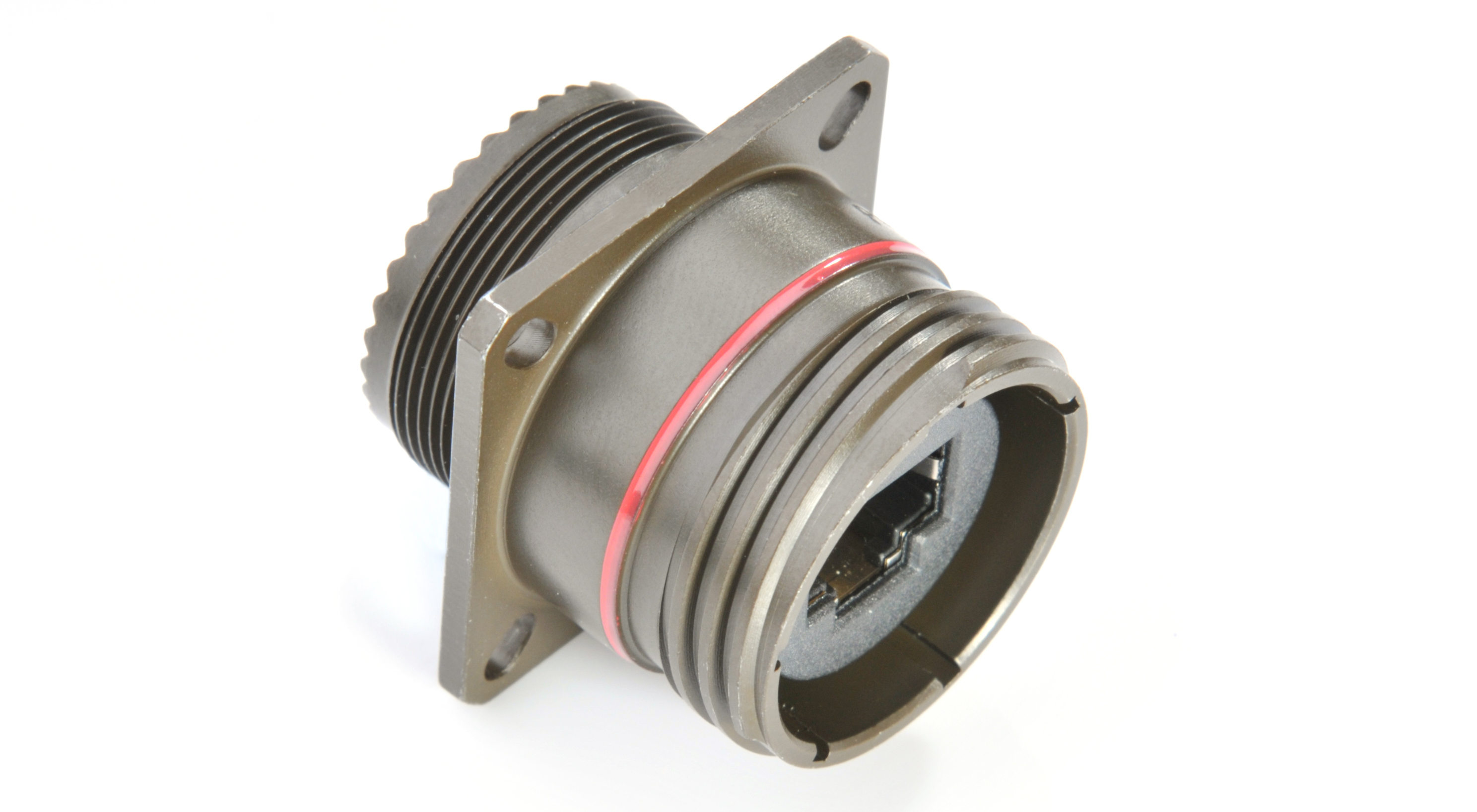

900-0601 CAT6a RJ45 38999 Flangemount Receptacle

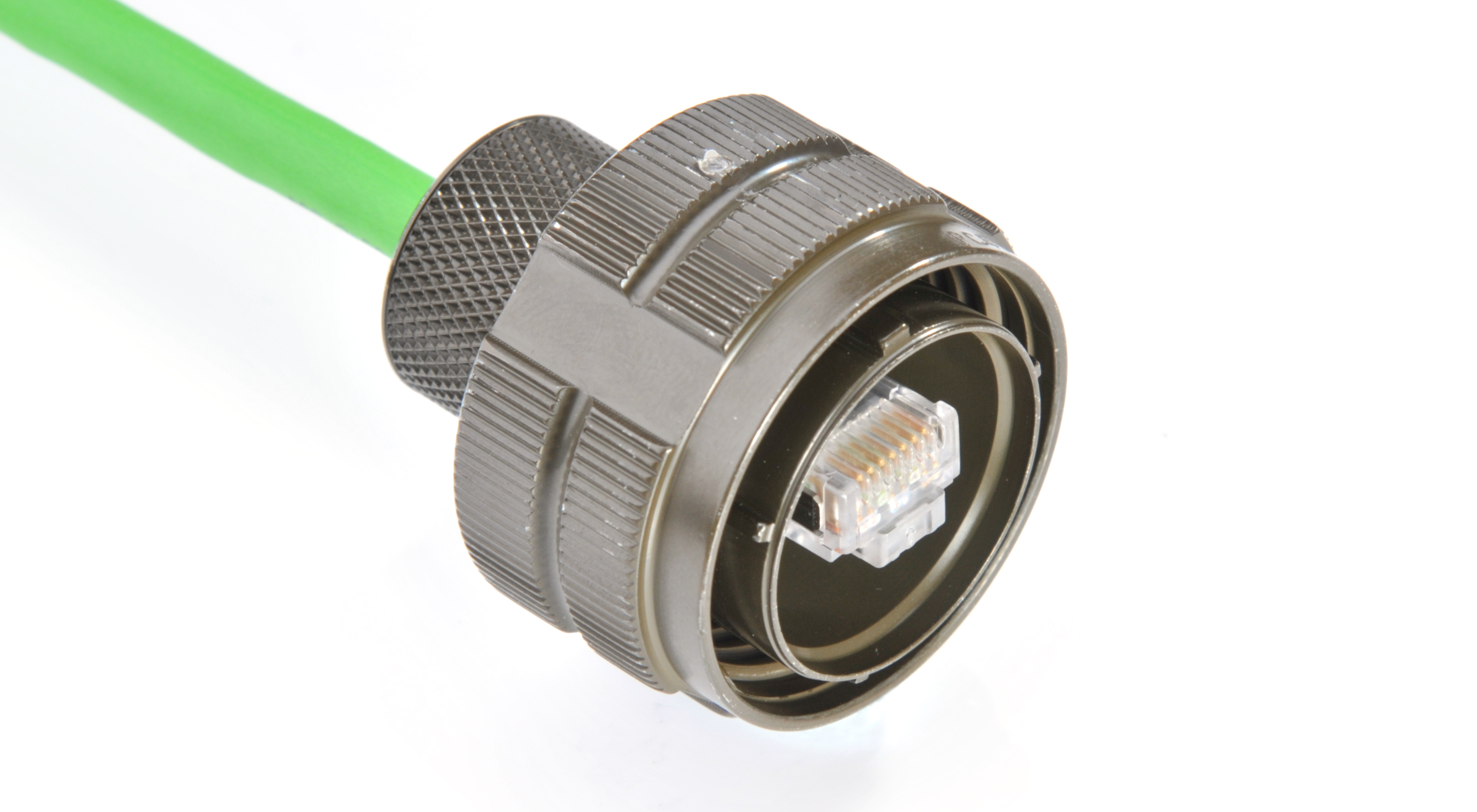

900-0602 CAT6a RJ45 38999 Plug Connector

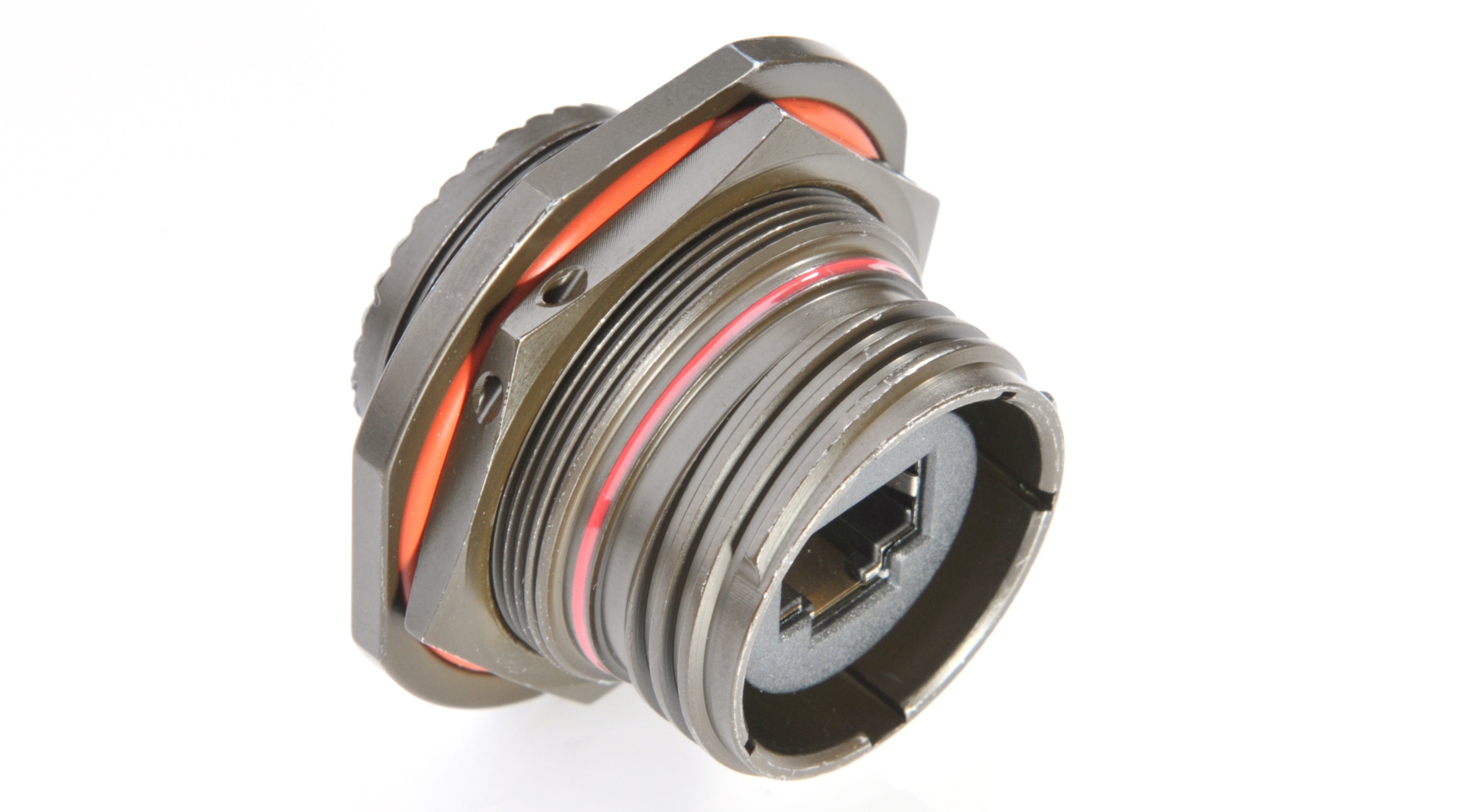

900-0603 CAT6a RJ45 38999 Jamnut Receptacle

Features / Options

• Data transfer rate tested to 10 Gigabit
• High impact shock and thermally resistant
• Environmental and moisture sealed
• Multiple Insert Rotation Options, Standard and Custom Platings
• RJ-45, CAT6a Feedthrough Connector Grounded to Outer Shell
• Generally to the requirement of MIL-DTL-38999

Specifications

Materials:

RJ-45

  • Contacts Copper with selective gold plate
  • Shielding – Nickel Plated Brass
  • Body – PA, UL94V-0
  • PCB-FR4, UL94V-0
  • Seal – Silicone Elastomer
  • Insulator – PPS GL40 UL94, Color Black
  • Potting – QSIL 550 UL94V-0

Performance:

  • Voltage Rating 50V DC / 35V AC
  • Temperature -40C to 120C
  • Plating Options
  • Aluminum/Electroless Nickel
  • Zinc Cobalt Olive Drab over Electroless Nickel
  • Stainless Steel
  • Nickel Aluminum Bronze

Strantech P/N:

  • 900-0601 CAT6a RJ45 38999 Feedthrough Flangemount Receptacle
  • 900-0602 CAT6a RJ45 38999 Plug Connector
  • 900-0603 CAT6a RJ45 38999 Feedthrough Jamnut Receptacle

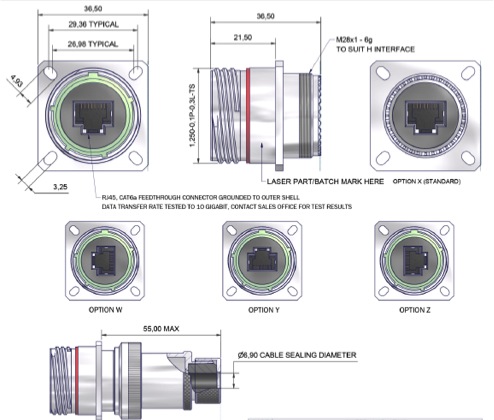

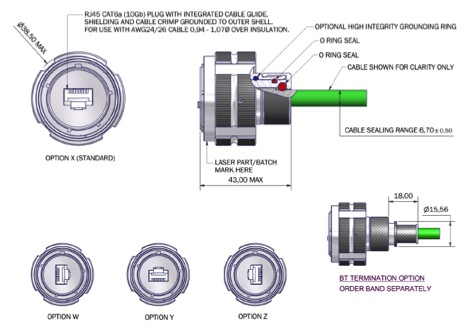

Drawings
