RFO-3-2000 Fiber Optic Cable Reel

Overview

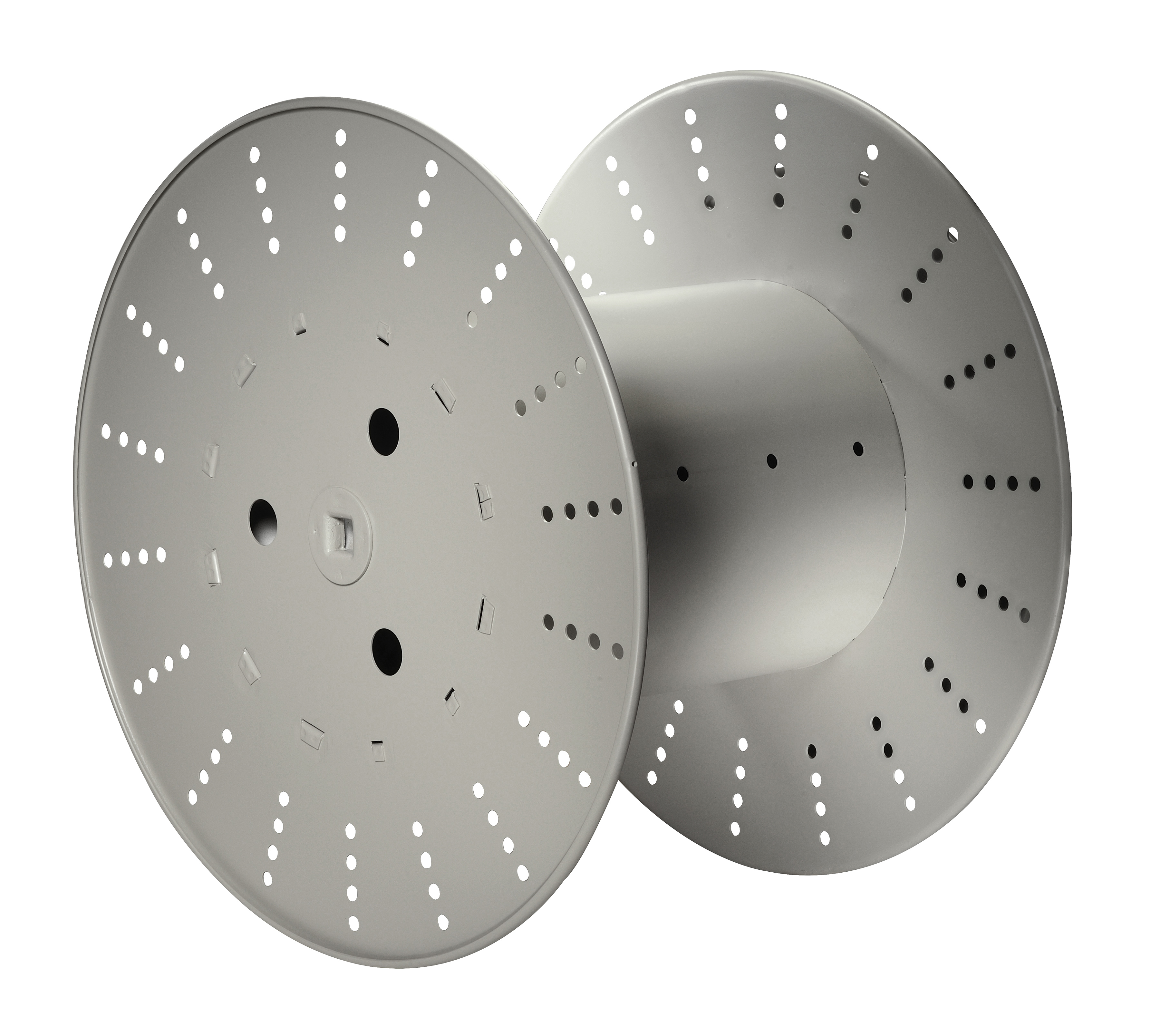

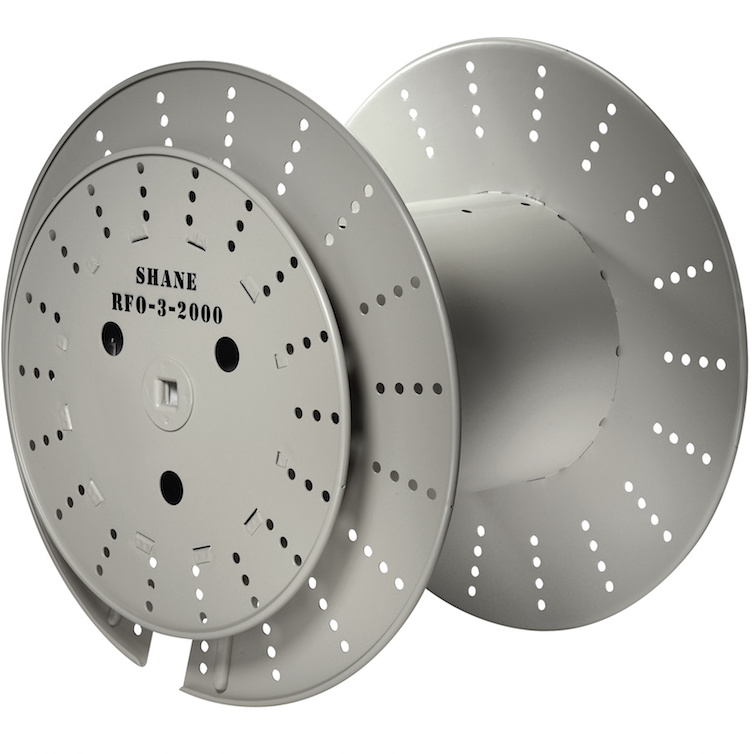

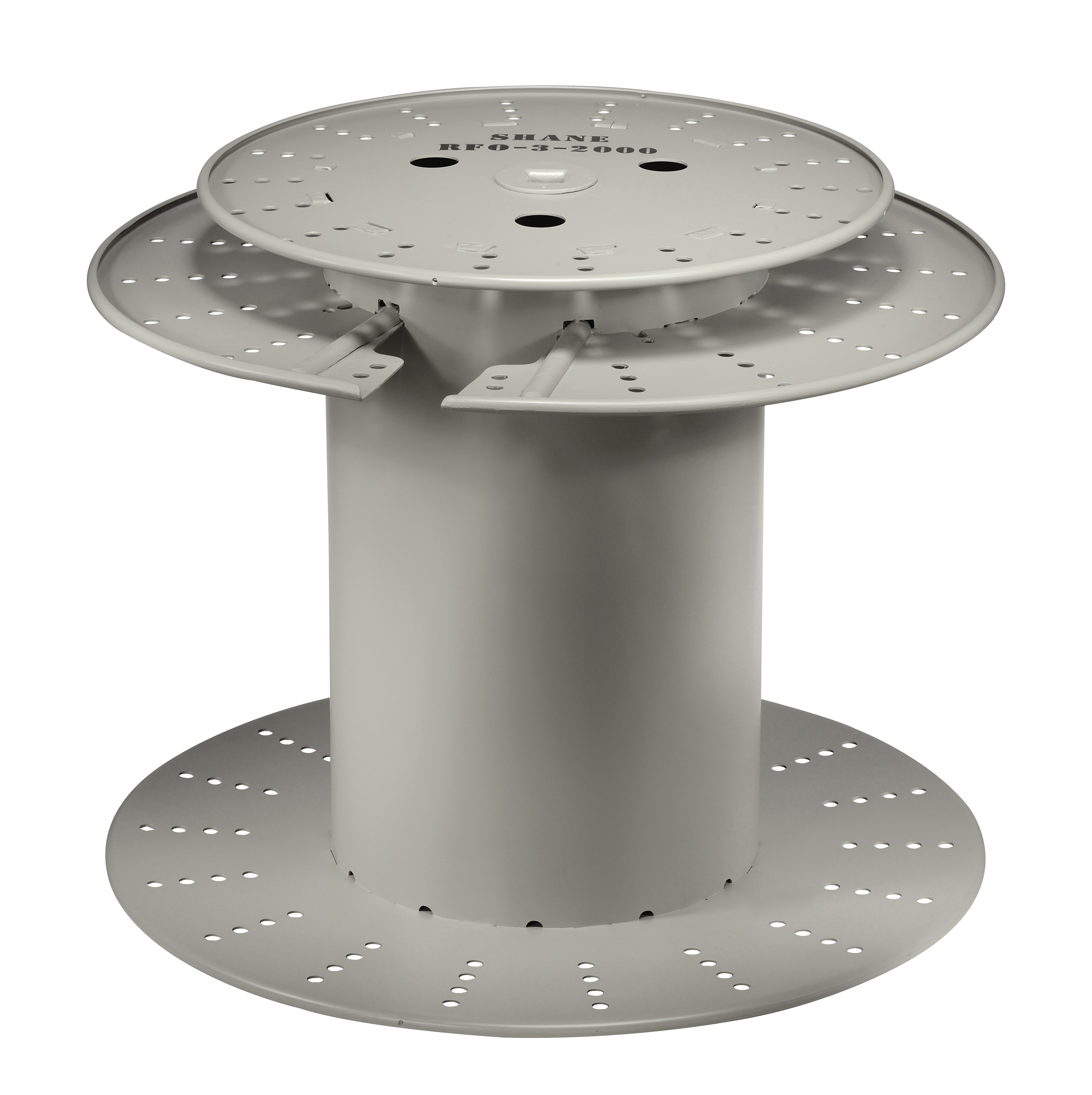

The RFO-3-2000 cable reel accommodates 500ft of 12 channel hybrid fiber optic cable. The full steel construction offers strength and durability required for repeated use in the toughest environments. Triple-flanged reel with mounting holes on all three heads for connector security. Paint finishes available are Navy Color Gray, CARC Green, CARC Desert Tan, and Black Powder Coat.

The RFO-2-3000 is the ideal cable reel solution for Tactical Fiber Optic Cable Assemblies, Indoor/Outdoor cable, plus  Ship-to-Shore Pierside Fiber Optic Umbilical Assembly applications.

Specifications



RFO-3-2000 Specifications
Cable Overall Diameter 9 mm
Rated Cable Length 1300 m
Flange Diameter 27.5 in
Outer Flange Diameter 20.75 in
Inner Drum Diameter 13.38 in
Nominal Reel Width 22.28 in
Minimum Bend Radius 6.63 in
Approx. Weight 58.2 lbs – 26.45 kg
