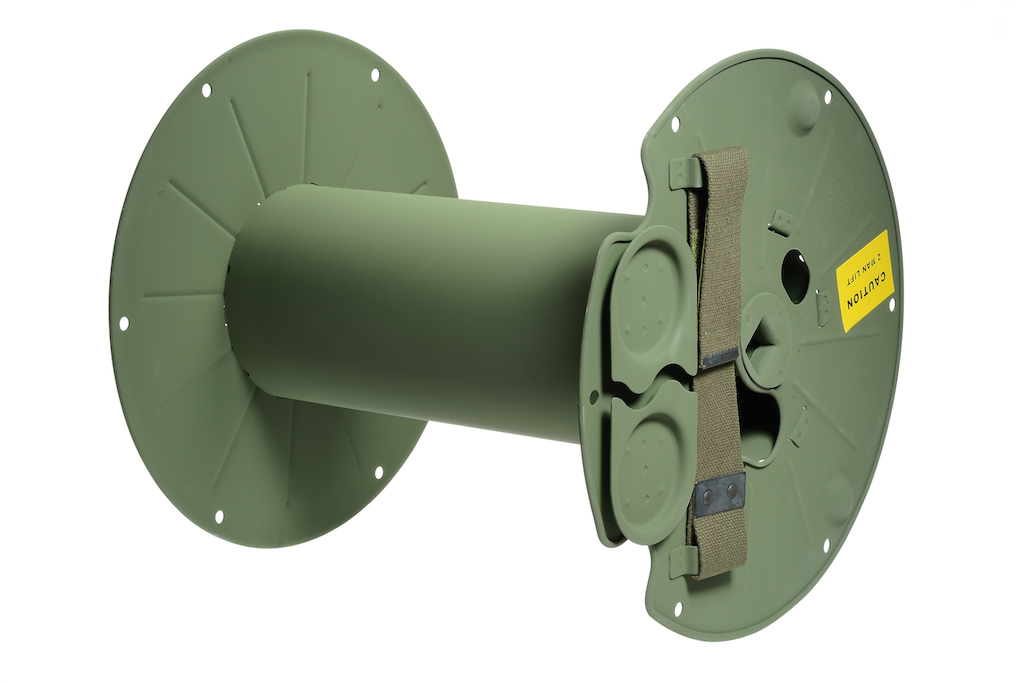

RFO-1000 Fiber Optic Cable Reel

Overview

The RFO-1000 cable reel holds 1000 meters of 6mm overall diameter cable.  The full steel construction offers strength and durability you can count on for repeated use in the toughest environments. Paint finishes available are CARC Green, Desert Tan, and Black Powder Coat.

Included in the rugged design are features for secure cable management, connector storage, and superior cable protection.  The ideal cable reel solution for Tactical Fiber Optic Cable Assemblies.

NSN #: 8130-01-375-3803



RFO-1000 Drawing

First Name (required)

Last Name (required)




Email (required)

Company

Specifications

Cable Overall Diameter 6 mm
Rated Cable Length 1000 m
Flange Diameter 16.31 in
Inner Drum Diameter 6.77 in
Nominal Reel Width 17.13 in
Minimum Bend Radius 3.31 in
Approx. Weight 16.36 lbs – 7.42kg
