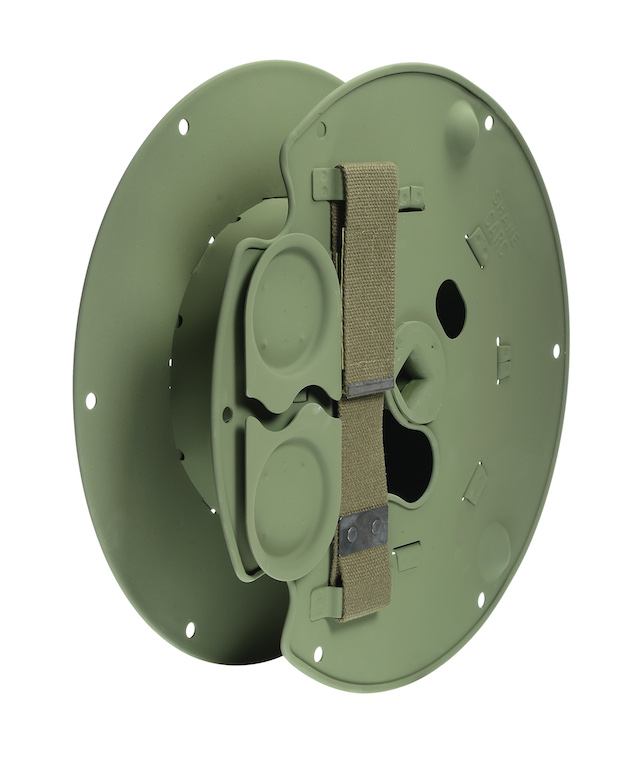

RFO-100-5 Tactical Fiber Optic Cable Reel

Overview

The RFO-100-5 cable reel holds 100 meters of 7mm overall diameter cable.  The full steel construction offers strength and durability you can count on for repeated use in the toughest environments. Paint finishes available are CARC Green, CARC Desert Tan, and Black Powder Coat.

Included in the rugged design are features for secure cable management, connector storage, and superior cable protection.  The ideal cable reel solution for Tactical Fiber Optic Cable Assemblies, and Indoor/Outdoor cable.



RFO-100-5 Drawing

First Name (required)

Last Name (required)




Email (required)

Company

Specifications

Cable Overall Diameter 7 mm
Rated Cable Length 100 m
Flange Diameter 16.31 in
Inner Drum Diameter 8.93 in
Nominal Reel Width 4.12 in
Minimum Bend Radius 4.44 in
Approx. Weight 11 lbs – 5kg
