12 Channel TFOCA GenX Hybrid Cable Assemblies

Overview

Founded on Stran’s military 2-plus-2 hermaphroditic hybrid variant, the 12 channel version features 8 fiber optic termini (multimode or singlemode) and 4, 12 AWG contacts for modest power transmission. Rated at 600 volts, the contacts incorporate all of the features necessary to ensure user safety and operational compatibility with optical operation such as shrouded contacts that prevent contamination of the fiber termini during make-and-break cycles.

Preserving its lineage of a hermaphroditic connector with internal circuit cross-over, longer cable haul lengths can be addressed in the field, by simply concatenating multiple cable segments together.

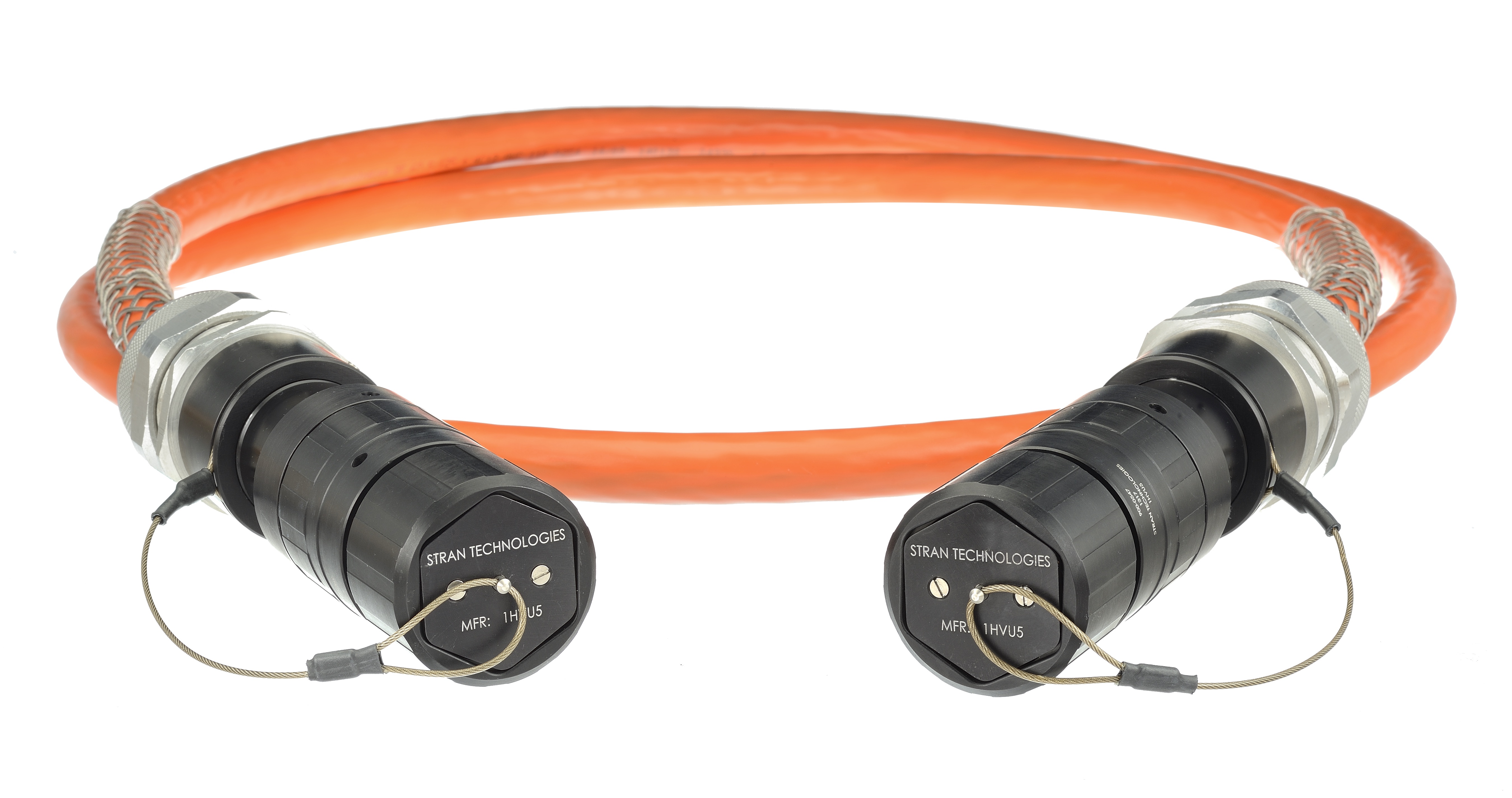

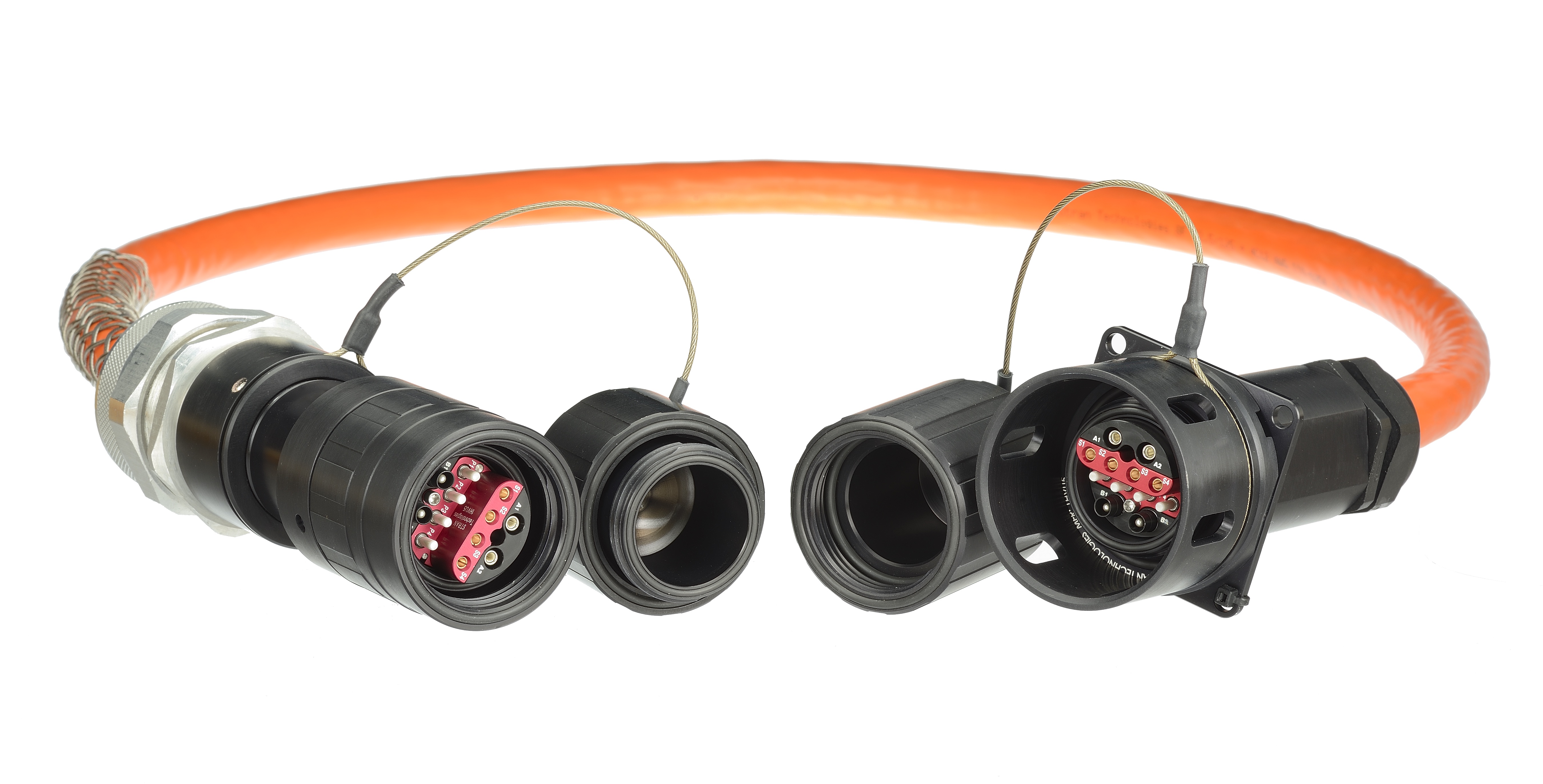

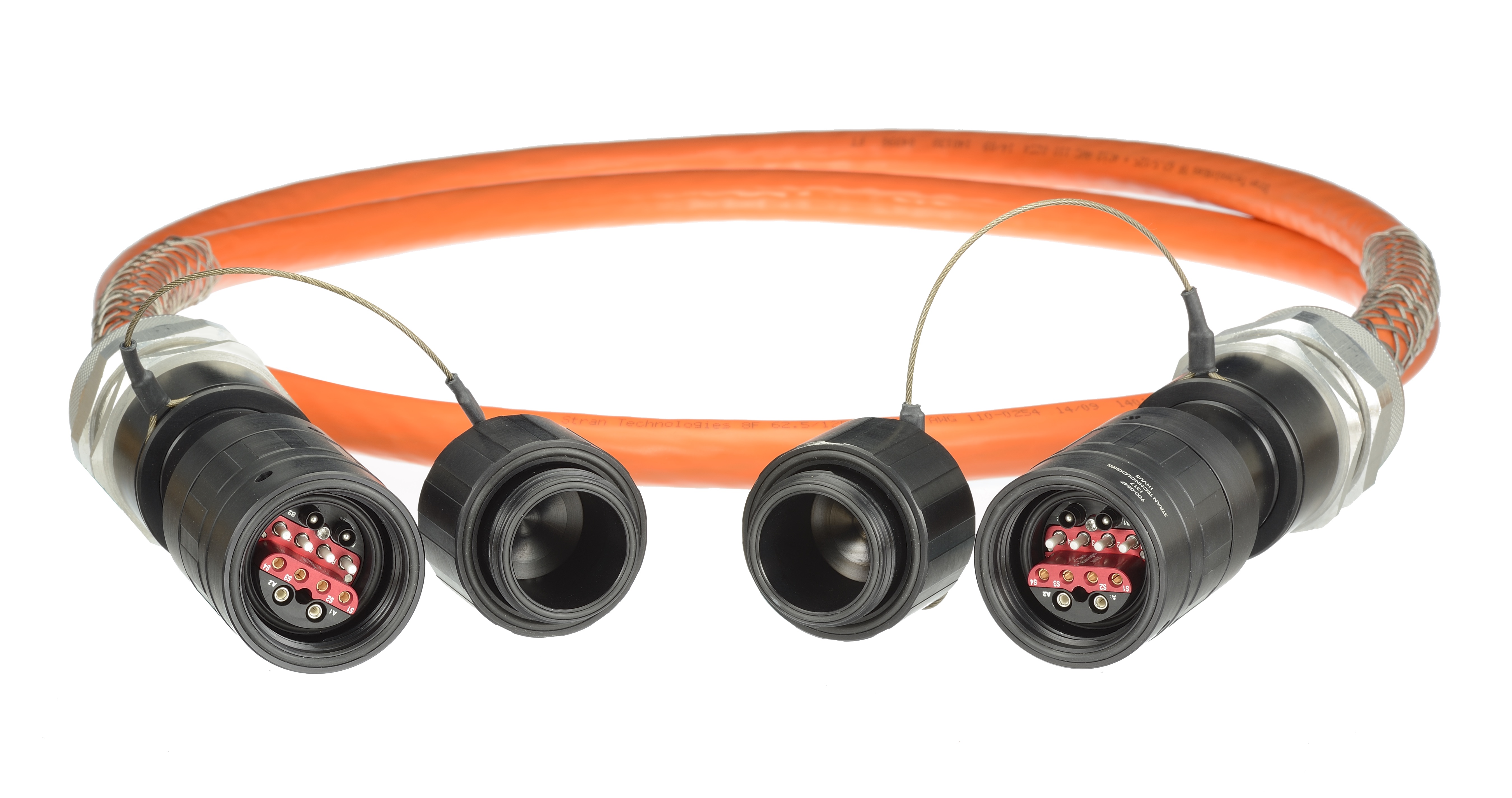

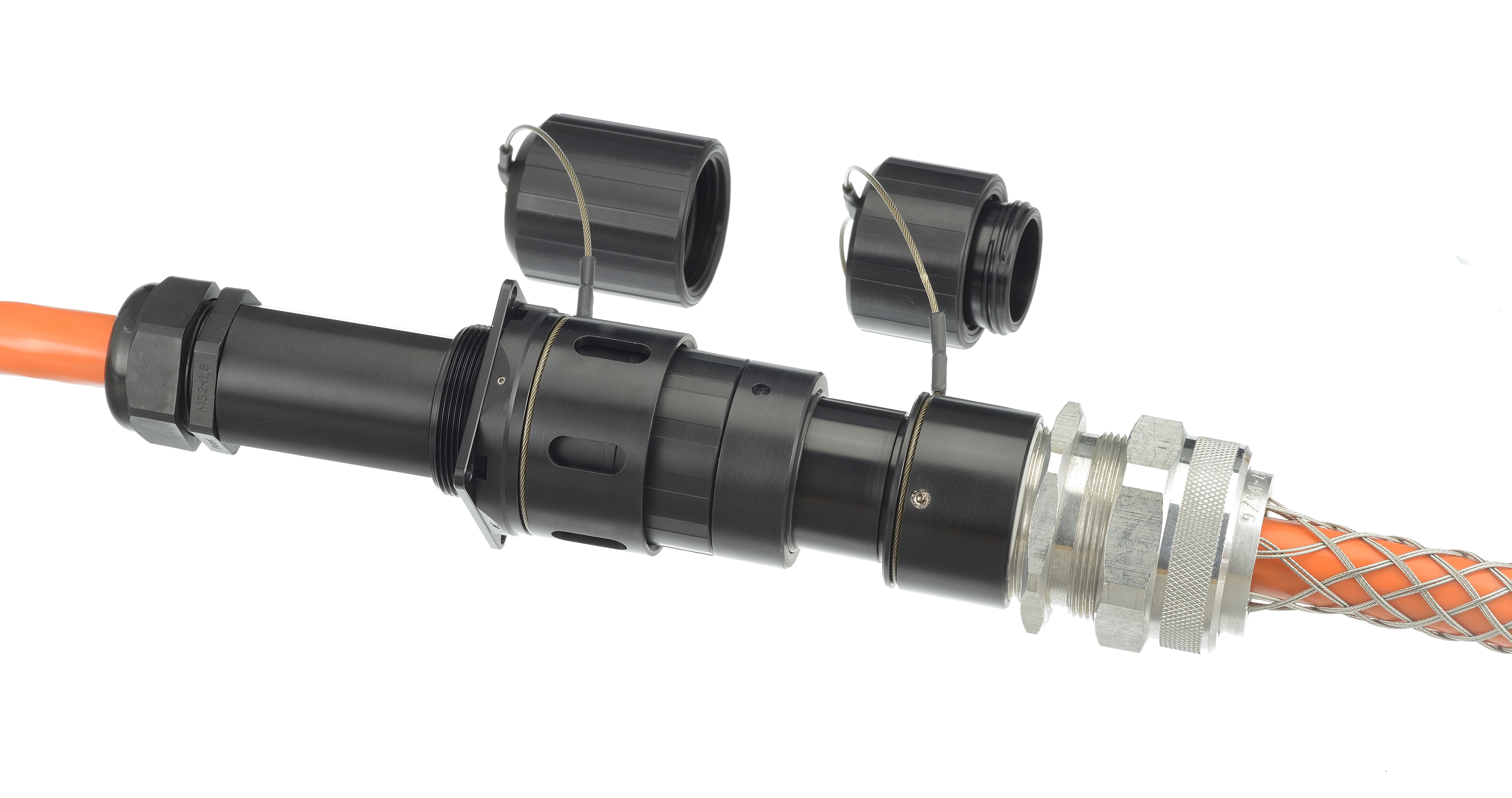

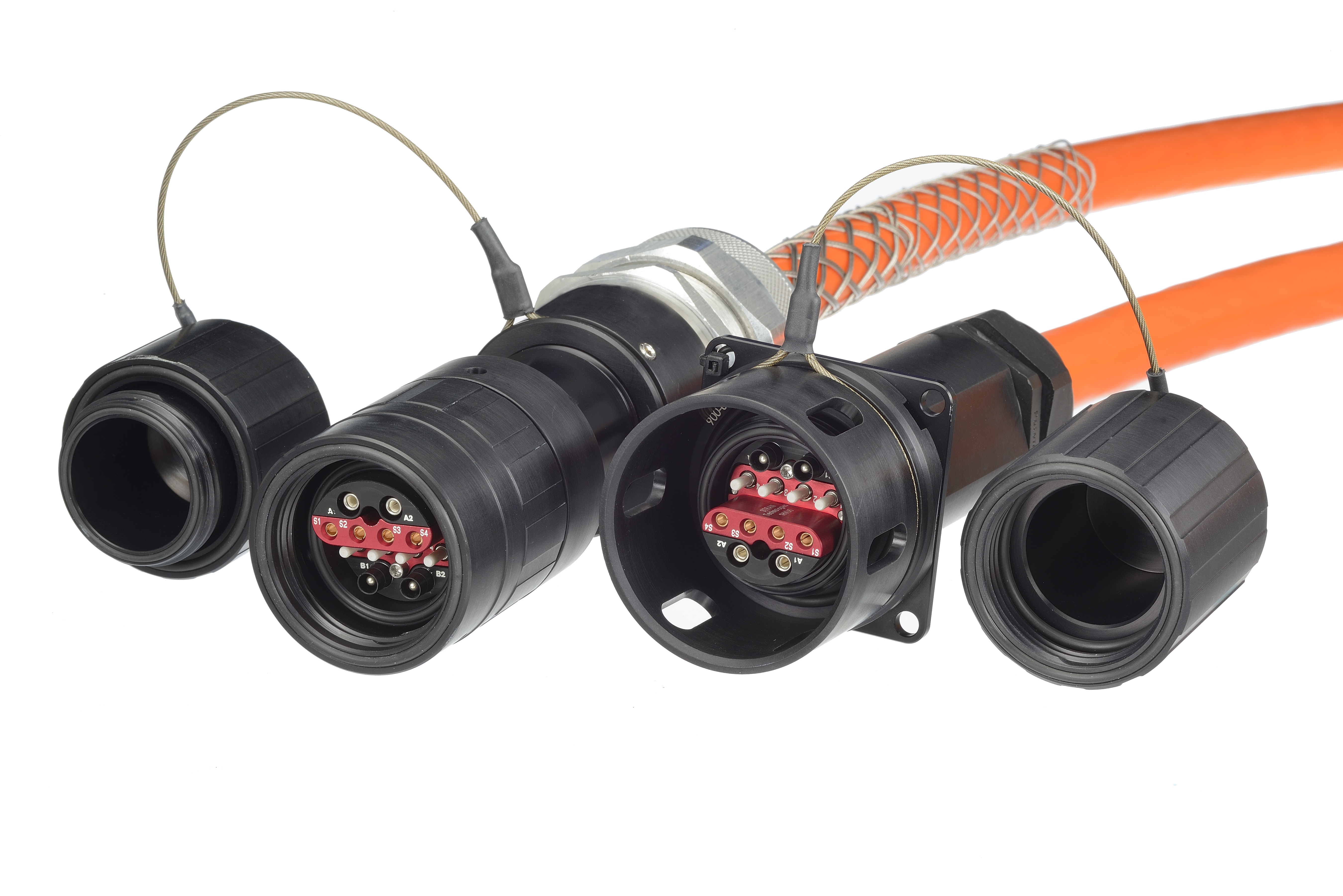

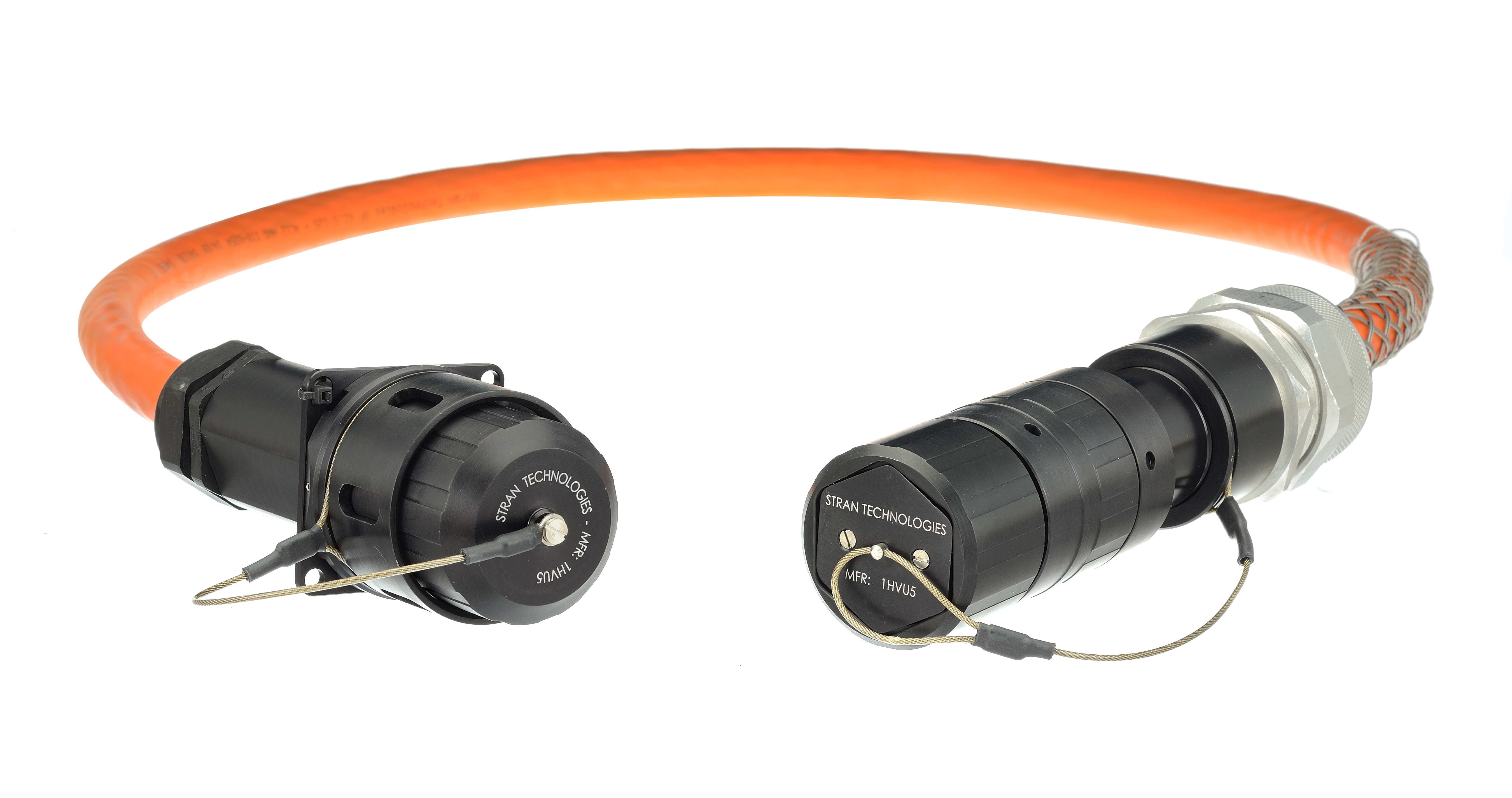

Plug assemblies feature stainless steel cable grips for enhanced cable retention and strain relief. Internal electrical grounding for suppression of electrostatic discharge during mate is also provided. The receptacle incorporates a ‘centralizing shroud’ to facilitate blind mating of the hermaphroditic connector during ‘rig-up/rig-down’ operations.




To access this document, please complete the following:


First Name (required)

Last Name (required)




Email (required)

Company

Applications

  • Land and Offshore Drilling Platforms
  • Chemical Manufacturers
  • Petrochemical Refineries

Features / Options

Connectors:

  • 12 Channel GenX Hybrid Connector:  8 Channel Fiber plus 4 Channel Copper

Plating Options:

  • Black Anodize
  • Stainless 316L
  • Stainless 303

Strain Relief Options:

  • Nylon Flex/ Dome
  • Ni plated brass Flex/ Dome
  • Stainless Kellems
  • Rubber Boot
  • Rubber Boot/ Nylon Dome
  • None

Cable and Fiber Type:

  • Hybrid Cable (Fiber Optic and Copper Wire)
  • 62.5/125 Multimode Fiber (MM-62.5μm)
  • 50/125  Multimode Fiber (MM-50μm)
  • 9/125 Singlemode Fiber (SM-9μm)
  • Length:  24” to 1 Mile (0.6m to 1.6km)

Special Instructions:

  • Spool onto: Reel, Loose Coil
  • Pinout: Straight, Crossover, Special

Specifications

Title Description
Optical Insertion Loss 62.5/125: 0.75 dBmax, 0.14 dBtyp
Return Loss >30 dB
Voltage Rating 600 Volts
Contact Rating (Amps) Compliance to MIL-STD-1560 for 16 AWG contacts
Mating Durability 2000 cycles per EIA-455-21
Vibration 10 g’s per EIA-455-11
Physical Shock per EIA-455-14, test condition A
Thermal Shock -62°C to +85°C per EIA-455-71, cond. B
Temperature Life  250 hours at 85°C per EIA-455-4
 Corrosion Resistance  EIA-455-16, test condition C
 Humidity  10 cycles per EIA-455-5
 Fluid Immersion  1 meter, per EIA-455-12
Crush Resistance 450 lbs, per EIA-455-26
Cable Retention 400 lbs, per EIA-455-6
Cable Seal Flexing Per EIA-455-1
Impact EIA-455-2
